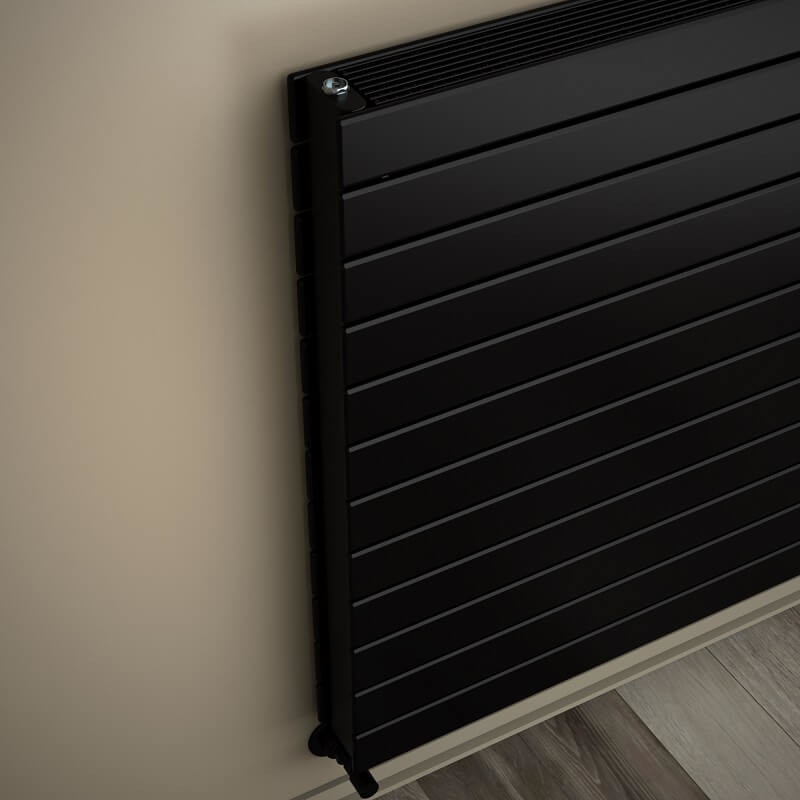

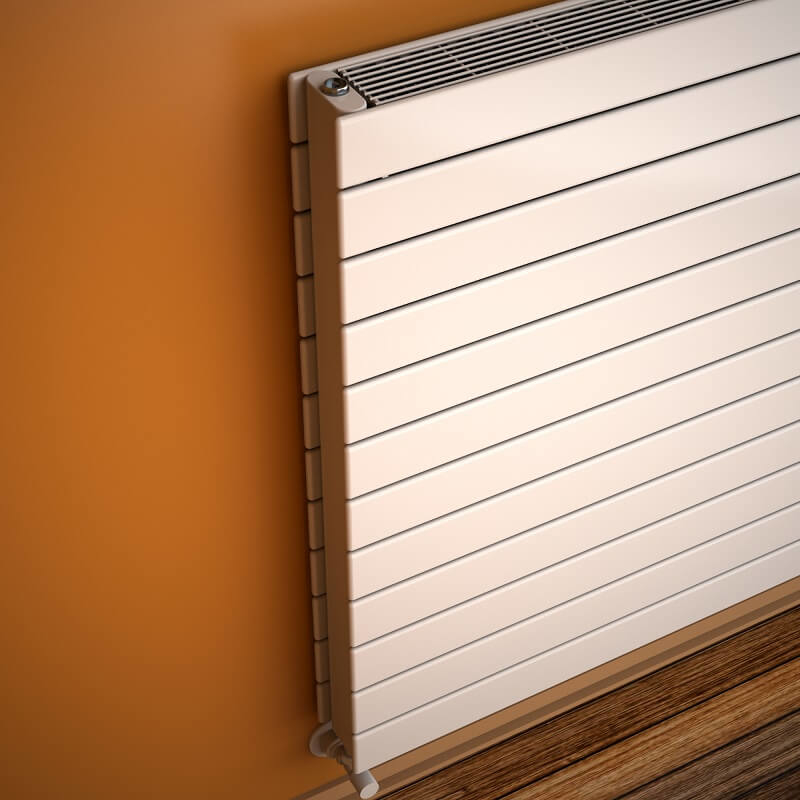

Type 22H Decorative Radiator 884x900 Matte Black

TECHNICAL INFORMATION

• Model = 22H

• Material =Steel

• Height=884 mm

• Width=900 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13,8 lt

• Weight=49,3 kg

• Boxed Weight=51,99 kg

• Box Size=94x96x13,6 cm

TAPPING OPTIONS

• Standard Entry=850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=990mm

• Cross Up-Right / Down-Left=990mm

• Cross Up-Left / Down-Right=990mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1714 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2160Kcal/h

• Heat Output 55/45-20° ?t=30°C=878Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1992 Watt

• Heat Output 90/70-20°?t=60°C=2510 Watt

• Heat Output 55/45-20°?t=30°C=1020 Watt


Btu

• Heat Output 75/65-20°?t=50°C=6797 Btu

• Heat Output 90/70-20°?t=60°C=8565 Btu

• Heat Output 55/45-20°?t=30°C=3481 Btu
