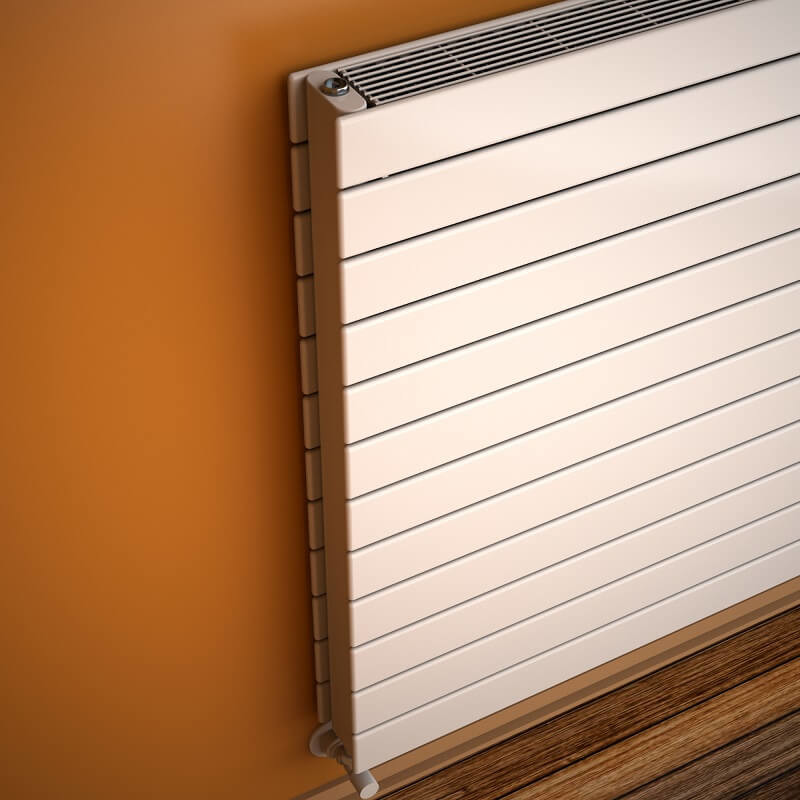

Type 22H Decorative Radiator 884x1600 White

TECHNICAL INFORMATION

• Model = 22H

• Material =Steel

• Height=884 mm

• Width=1600 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=22,1 lt

• Weight=85,9 kg

• Boxed Weight=90,45 kg

• Box Size=94x166x13,6 cm

TAPPING OPTIONS

• Standard Entry=1550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1690mm

• Cross Up-Right / Down-Left=1690mm

• Cross Up-Left / Down-Right=1690mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 3080 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3881Kcal/h

• Heat Output 55/45-20° ?t=30°C=1577Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=3581 Watt

• Heat Output 90/70-20°?t=60°C=4513 Watt

• Heat Output 55/45-20°?t=30°C=1834 Watt


Btu

• Heat Output 75/65-20°?t=50°C=12219 Btu

• Heat Output 90/70-20°?t=60°C=15396 Btu

• Heat Output 55/45-20°?t=30°C=6257 Btu
