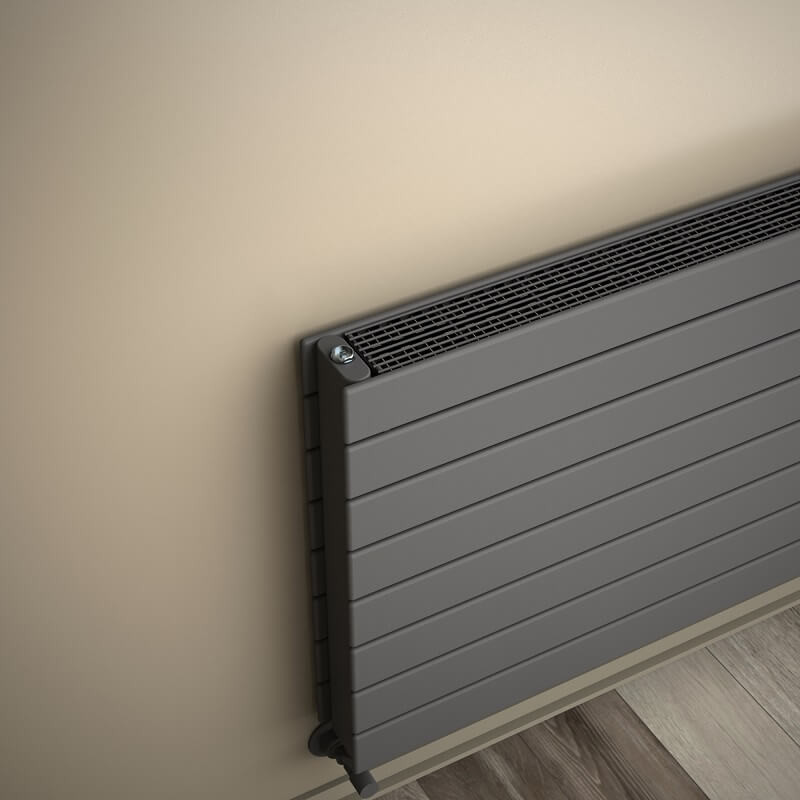

Type 22H Decorative Radiator 588x2200 Anthracite

TECHNICAL INFORMATION

• Model = 22H

• Material =Steel

• Height=588 mm

• Width=2200 mm

• Color/Coating=Anthracite

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=19,5 lt

• Weight=78,2 kg

• Boxed Weight=82,39 kg

• Box Size=64x226x13,6 cm

TAPPING OPTIONS

• Standard Entry=2150 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2290mm

• Cross Up-Right / Down-Left=2290mm

• Cross Up-Left / Down-Right=2290mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 3170 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3995Kcal/h

• Heat Output 55/45-20° ?t=30°C=1624Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=3685 Watt

• Heat Output 90/70-20°?t=60°C=4644 Watt

• Heat Output 55/45-20°?t=30°C=1887 Watt


Btu

• Heat Output 75/65-20°?t=50°C=12574 Btu

• Heat Output 90/70-20°?t=60°C=15844 Btu

• Heat Output 55/45-20°?t=30°C=6438 Btu
