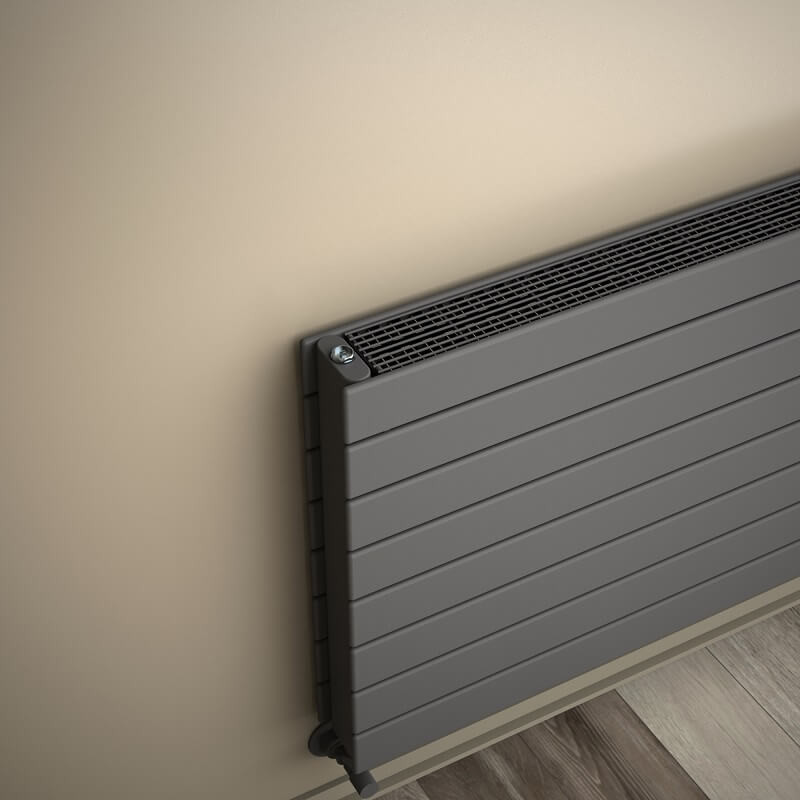

Type 22H Decorative Radiator 588x1900 Anthracite

TECHNICAL INFORMATION

• Model = 22H

• Material =Steel

• Height=588 mm

• Width=1900 mm

• Color/Coating=Anthracite

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17,1 lt

• Weight=67,7 kg

• Boxed Weight=71,36 kg

• Box Size=64x196x13,6 cm

TAPPING OPTIONS

• Standard Entry=1850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1990mm

• Cross Up-Right / Down-Left=1990mm

• Cross Up-Left / Down-Right=1990mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2737 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3449Kcal/h

• Heat Output 55/45-20° ?t=30°C=1402Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=3182 Watt

• Heat Output 90/70-20°?t=60°C=4010 Watt

• Heat Output 55/45-20°?t=30°C=1630 Watt


Btu

• Heat Output 75/65-20°?t=50°C=10857 Btu

• Heat Output 90/70-20°?t=60°C=13680 Btu

• Heat Output 55/45-20°?t=30°C=5559 Btu
