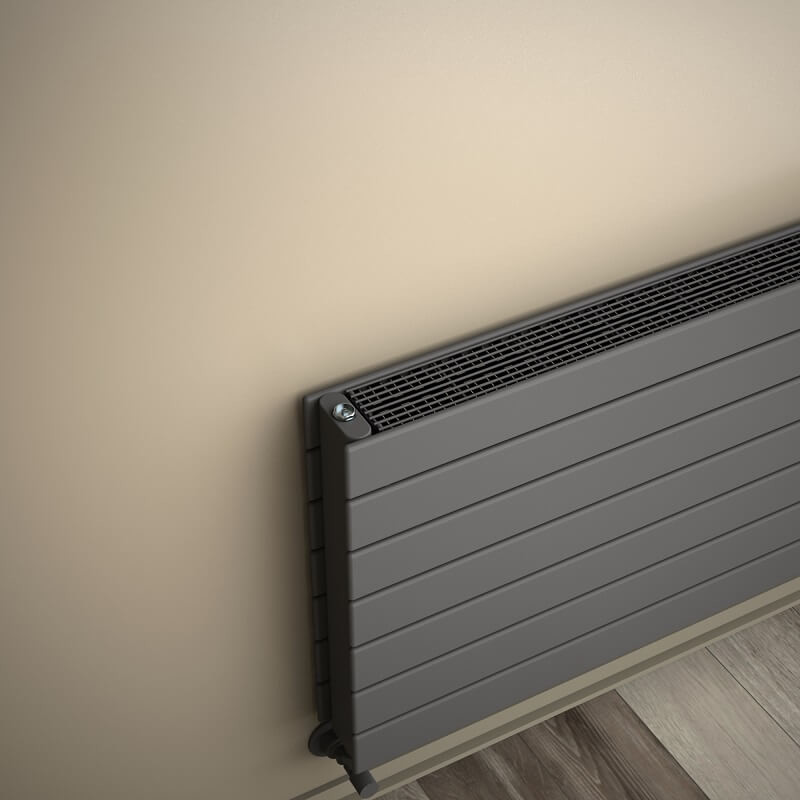

Type 22H Decorative Radiator 514x2600 Anthracite

TECHNICAL INFORMATION

• Model = 22H

• Material =Steel

• Height=514 mm

• Width=2600 mm

• Color/Coating=Anthracite

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=19,8 lt

• Weight=80,6 kg

• Boxed Weight=84,91 kg

• Box Size=57x266x13,6 cm

TAPPING OPTIONS

• Standard Entry=2550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2690mm

• Cross Up-Right / Down-Left=2690mm

• Cross Up-Left / Down-Right=2690mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 3392 Kcal/h

• Heat Output 90/70-20° ?t=60°C=4274Kcal/h

• Heat Output 55/45-20° ?t=30°C=1737Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=3944 Watt

• Heat Output 90/70-20°?t=60°C=4970 Watt

• Heat Output 55/45-20°?t=30°C=2020 Watt


Btu

• Heat Output 75/65-20°?t=50°C=13457 Btu

• Heat Output 90/70-20°?t=60°C=16956 Btu

• Heat Output 55/45-20°?t=30°C=6890 Btu
