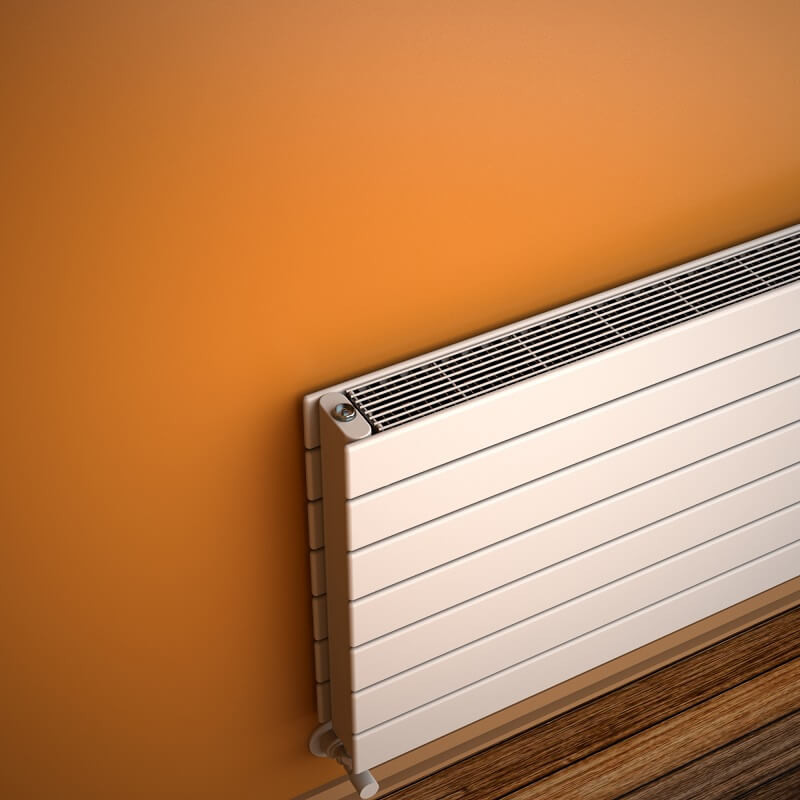

Type 22H Decorative Radiator 514x1500 White

TECHNICAL INFORMATION

• Model = 22H

• Material =Steel

• Height=514 mm

• Width=1500 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,2 lt

• Weight=47,1 kg

• Boxed Weight=49,72 kg

• Box Size=57x156x13,6 cm

TAPPING OPTIONS

• Standard Entry=1450 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1590mm

• Cross Up-Right / Down-Left=1590mm

• Cross Up-Left / Down-Right=1590mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1957 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2466Kcal/h

• Heat Output 55/45-20° ?t=30°C=1002Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2275 Watt

• Heat Output 90/70-20°?t=60°C=2867 Watt

• Heat Output 55/45-20°?t=30°C=1165 Watt


Btu

• Heat Output 75/65-20°?t=50°C=7763 Btu

• Heat Output 90/70-20°?t=60°C=9782 Btu

• Heat Output 55/45-20°?t=30°C=3975 Btu
