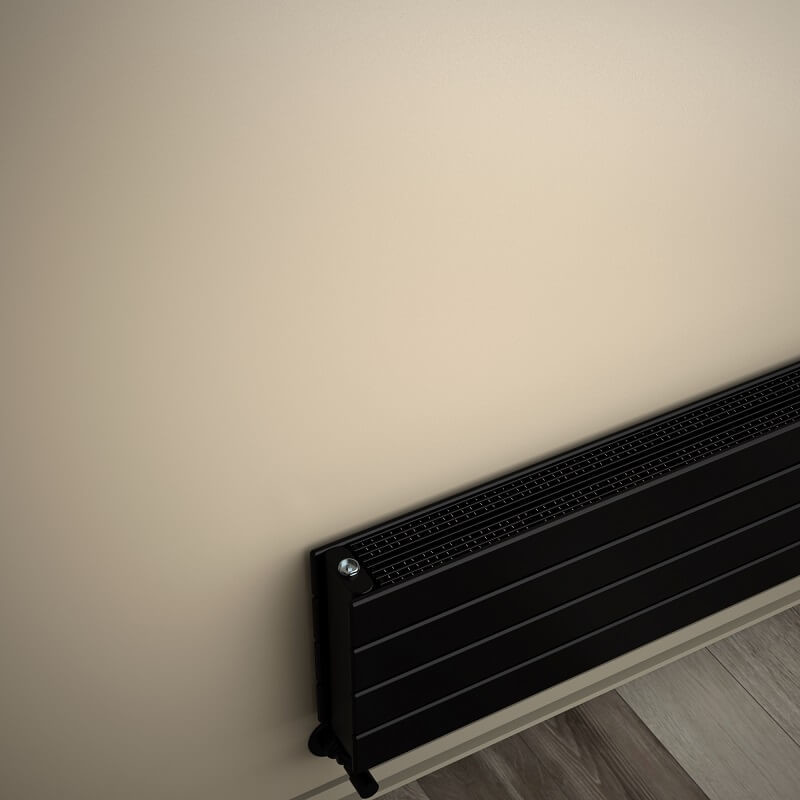

Type 22H Decorative Radiator 292x900 Matte Black

TECHNICAL INFORMATION

• Model = 22H

• Material =Steel

• Height=292 mm

• Width=900 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=4,6 lt

• Weight=16,5 kg

• Boxed Weight=17,59 kg

• Box Size=35x96x13,6 cm

TAPPING OPTIONS

• Standard Entry=850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=990mm

• Cross Up-Right / Down-Left=990mm

• Cross Up-Left / Down-Right=990mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 738 Kcal/h

• Heat Output 90/70-20° ?t=60°C=930Kcal/h

• Heat Output 55/45-20° ?t=30°C=378Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=858 Watt

• Heat Output 90/70-20°?t=60°C=1082 Watt

• Heat Output 55/45-20°?t=30°C=440 Watt


Btu

• Heat Output 75/65-20°?t=50°C=2928 Btu

• Heat Output 90/70-20°?t=60°C=3690 Btu

• Heat Output 55/45-20°?t=30°C=1500 Btu
