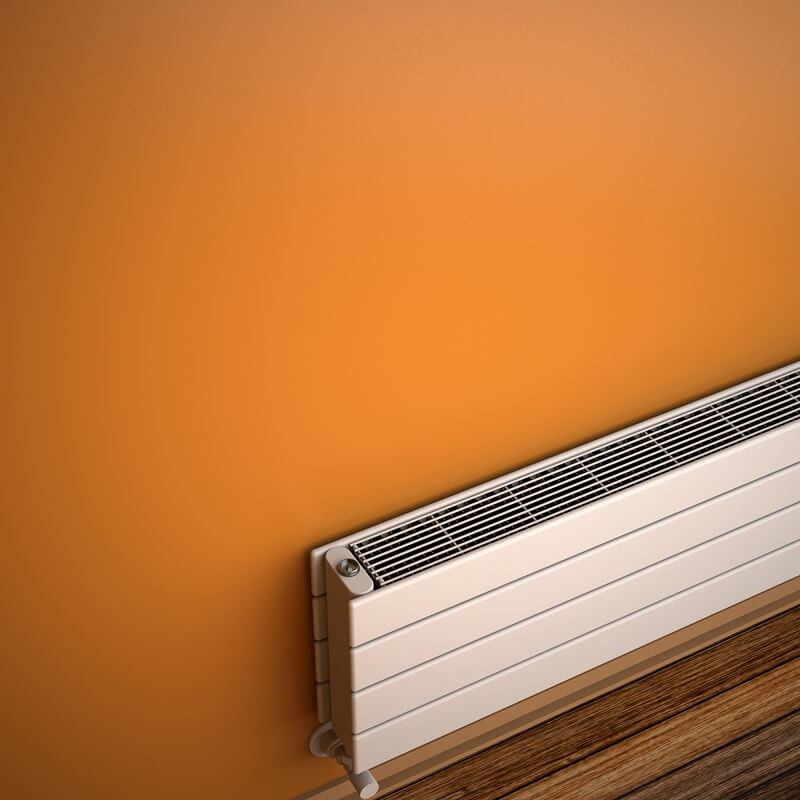

Type 22H Decorative Radiator 292x2000 White

TECHNICAL INFORMATION

• Model = 22H

• Material =Steel

• Height=292 mm

• Width=2000 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x80 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=100 mm

• Wall to Center of Inlet=85 mm

• Wall Projection Distance=135 mm

• Radiator Thread Dimension=1/2"

• Water Volume=8,9 lt

• Weight=35,7 kg

• Boxed Weight=37,76 kg

• Box Size=35x206x13,6 cm

TAPPING OPTIONS

• Standard Entry=1950 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2090mm

• Cross Up-Right / Down-Left=2090mm

• Cross Up-Left / Down-Right=2090mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1697 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2139Kcal/h

• Heat Output 55/45-20° ?t=30°C=869Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1973 Watt

• Heat Output 90/70-20°?t=60°C=2486 Watt

• Heat Output 55/45-20°?t=30°C=1011 Watt


Btu

• Heat Output 75/65-20°?t=50°C=6732 Btu

• Heat Output 90/70-20°?t=60°C=8483 Btu

• Heat Output 55/45-20°?t=30°C=3447 Btu
