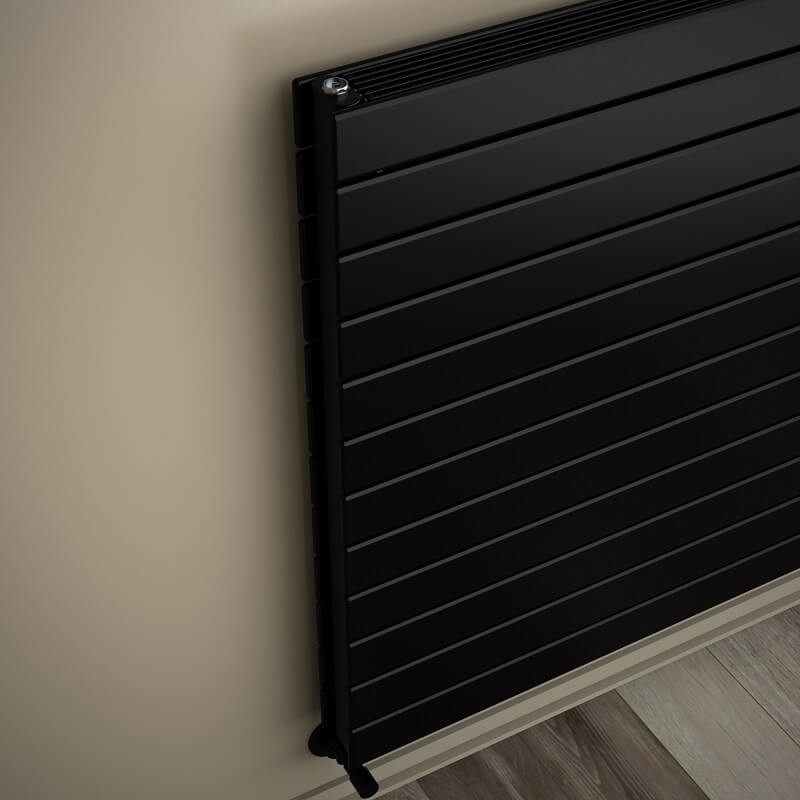

Type 21H Decorative Radiator 884x800 Matte Black

TECHNICAL INFORMATION

• Model = 21H

• Material =Steel

• Height=884 mm

• Width=800 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,8 lt

• Weight=40,3 kg

• Boxed Weight=42,73 kg

• Box Size=94x86x11,6 cm

TAPPING OPTIONS

• Standard Entry=750 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=890mm

• Cross Up-Right / Down-Left=890mm

• Cross Up-Left / Down-Right=890mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1224 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1543Kcal/h

• Heat Output 55/45-20° ?t=30°C=627Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1423 Watt

• Heat Output 90/70-20°?t=60°C=1793 Watt

• Heat Output 55/45-20°?t=30°C=729 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4856 Btu

• Heat Output 90/70-20°?t=60°C=6119 Btu

• Heat Output 55/45-20°?t=30°C=2487 Btu
