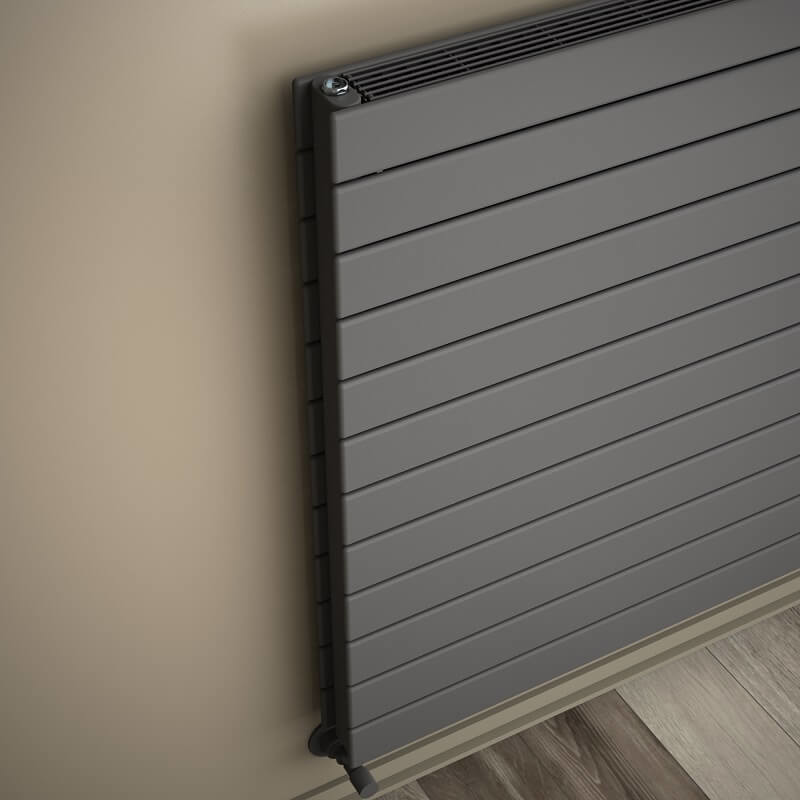

Type 21H Decorative Radiator 884x1200 Anthracite

TECHNICAL INFORMATION

• Model = 21H

• Material =Steel

• Height=884 mm

• Width=1200 mm

• Color/Coating=Anthracite

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=18,1 lt

• Weight=59,4 kg

• Boxed Weight=62,89 kg

• Box Size=94x126x11,6 cm

TAPPING OPTIONS

• Standard Entry=1150 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1290mm

• Cross Up-Right / Down-Left=1290mm

• Cross Up-Left / Down-Right=1290mm

• Side - Right=850mm

• Side - Left=850mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1837 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2315Kcal/h

• Heat Output 55/45-20° ?t=30°C=941Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2135 Watt

• Heat Output 90/70-20°?t=60°C=2691 Watt

• Heat Output 55/45-20°?t=30°C=1094 Watt


Btu

• Heat Output 75/65-20°?t=50°C=7285 Btu

• Heat Output 90/70-20°?t=60°C=9180 Btu

• Heat Output 55/45-20°?t=30°C=3730 Btu
