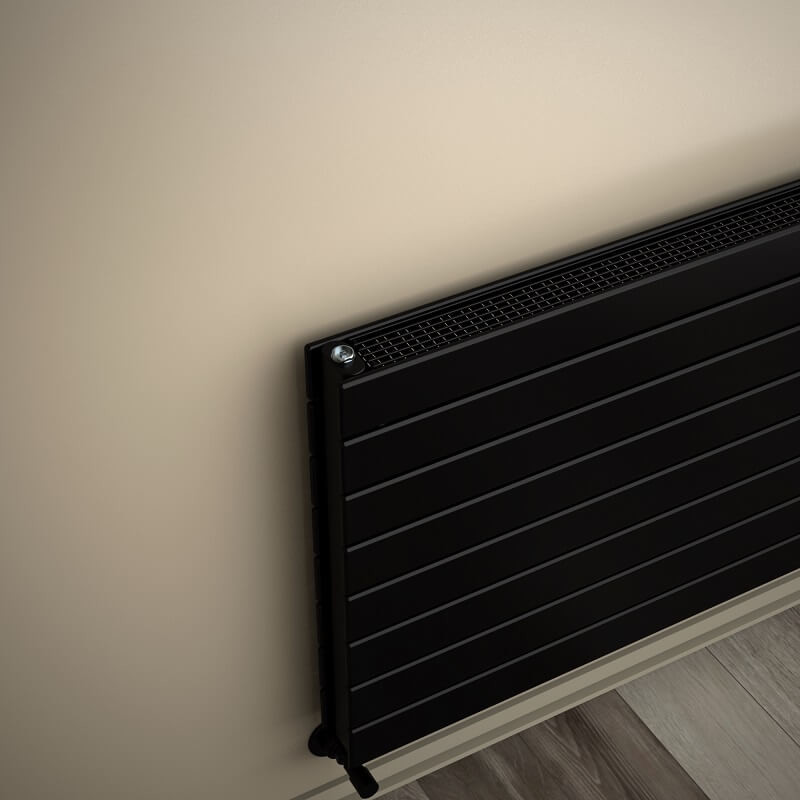

Type 21H Decorative Radiator 588x900 Matte Black

TECHNICAL INFORMATION

• Model = 21H

• Material =Steel

• Height=588 mm

• Width=900 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=9,4 lt

• Weight=30 kg

• Boxed Weight=31,89 kg

• Box Size=64x96x11,6 cm

TAPPING OPTIONS

• Standard Entry=850 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=990mm

• Cross Up-Right / Down-Left=990mm

• Cross Up-Left / Down-Right=990mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1026 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1293Kcal/h

• Heat Output 55/45-20° ?t=30°C=526Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1193 Watt

• Heat Output 90/70-20°?t=60°C=1504 Watt

• Heat Output 55/45-20°?t=30°C=611 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4071 Btu

• Heat Output 90/70-20°?t=60°C=5130 Btu

• Heat Output 55/45-20°?t=30°C=2085 Btu
