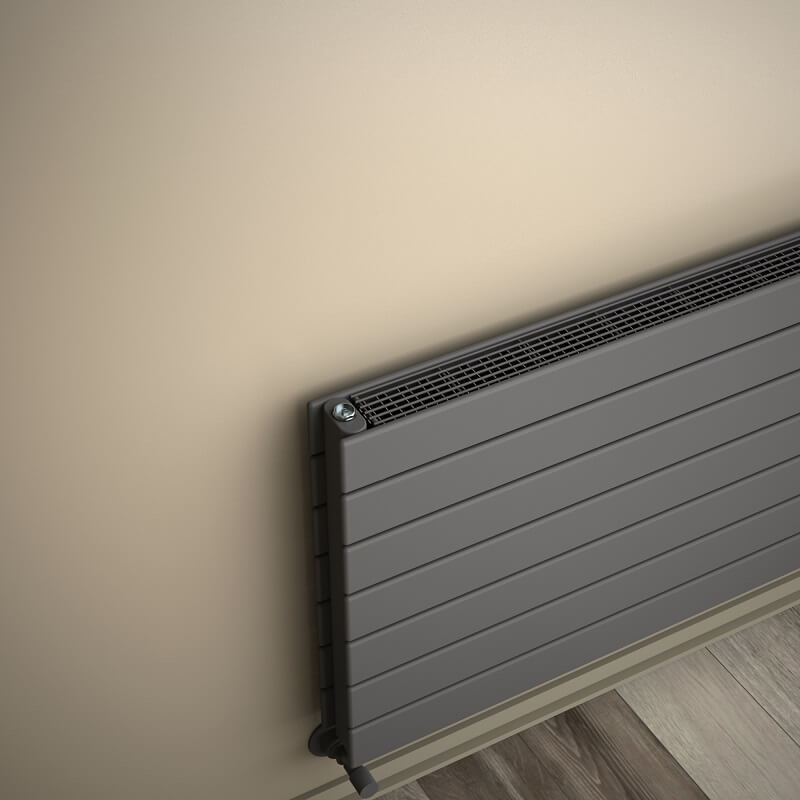

Type 21H Decorative Radiator 514x2100 Anthracite

TECHNICAL INFORMATION

• Model = 21H

• Material =Steel

• Height=514 mm

• Width=2100 mm

• Color/Coating=Anthracite

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17,5 lt

• Weight=59,8 kg

• Boxed Weight=63,34 kg

• Box Size=57x216x11,6 cm

TAPPING OPTIONS

• Standard Entry=2050 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2190mm

• Cross Up-Right / Down-Left=2190mm

• Cross Up-Left / Down-Right=2190mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2176 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2742Kcal/h

• Heat Output 55/45-20° ?t=30°C=1115Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2530 Watt

• Heat Output 90/70-20°?t=60°C=3188 Watt

• Heat Output 55/45-20°?t=30°C=1296 Watt


Btu

• Heat Output 75/65-20°?t=50°C=8633 Btu

• Heat Output 90/70-20°?t=60°C=10878 Btu

• Heat Output 55/45-20°?t=30°C=4421 Btu
