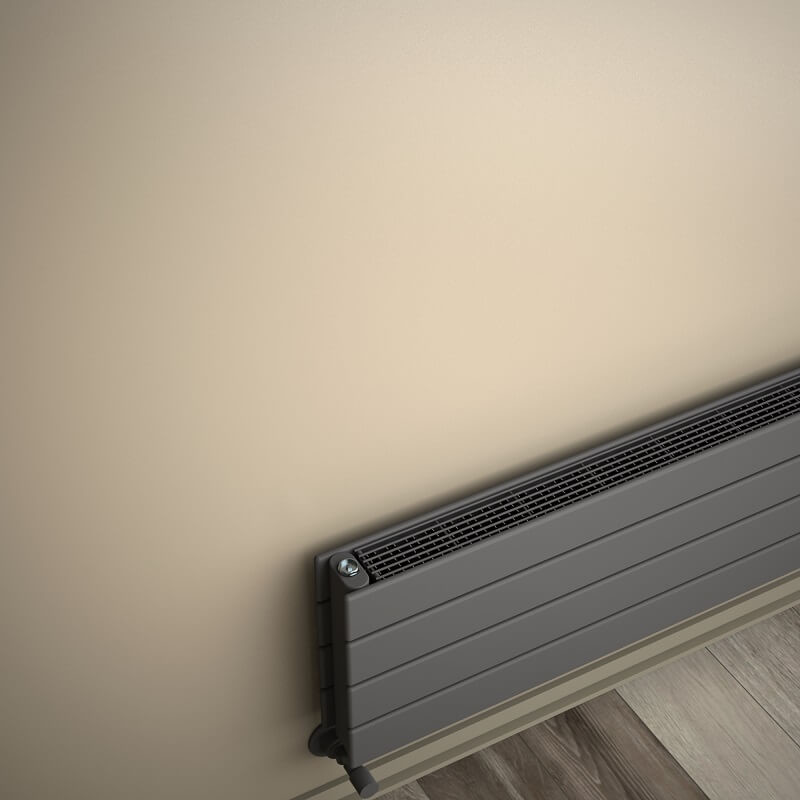

Type 21H Decorative Radiator 292x2600 Anthracite

TECHNICAL INFORMATION

• Model = 21H

• Material =Steel

• Height=292 mm

• Width=2600 mm

• Color/Coating=Anthracite

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,2 lt

• Weight=42,1 kg

• Boxed Weight=44,68 kg

• Box Size=35x266x11,6 cm

TAPPING OPTIONS

• Standard Entry=2550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2690mm

• Cross Up-Right / Down-Left=2690mm

• Cross Up-Left / Down-Right=2690mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1788 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2253Kcal/h

• Heat Output 55/45-20° ?t=30°C=916Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2079 Watt

• Heat Output 90/70-20°?t=60°C=2620 Watt

• Heat Output 55/45-20°?t=30°C=1065 Watt


Btu

• Heat Output 75/65-20°?t=50°C=7094 Btu

• Heat Output 90/70-20°?t=60°C=8939 Btu

• Heat Output 55/45-20°?t=30°C=3633 Btu
