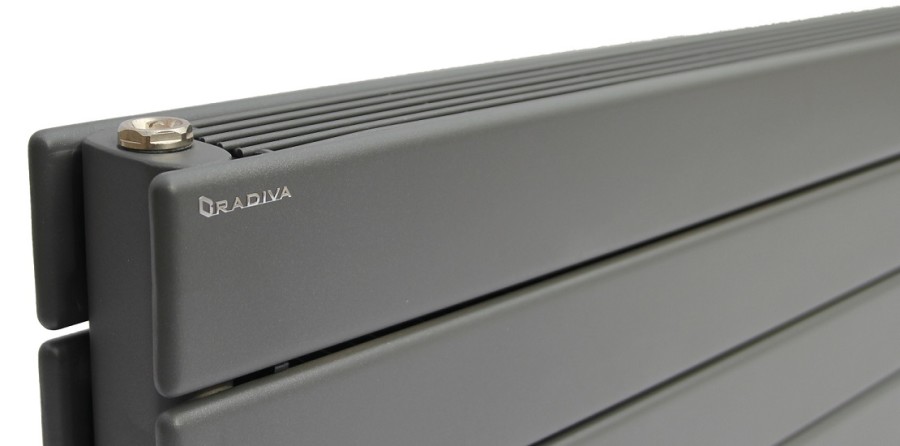

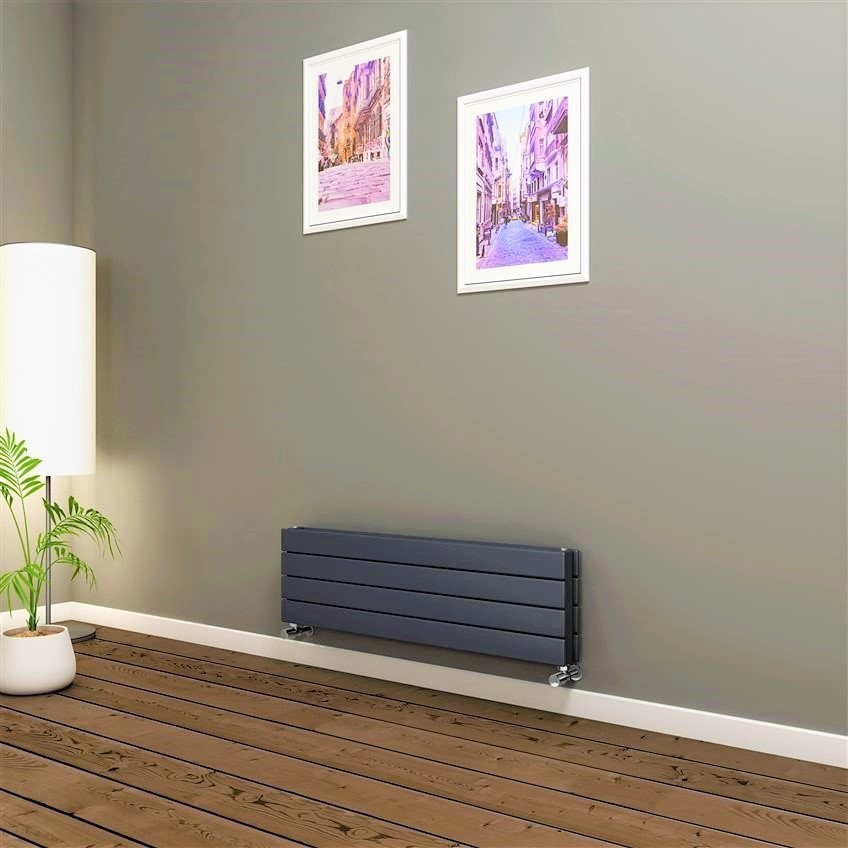

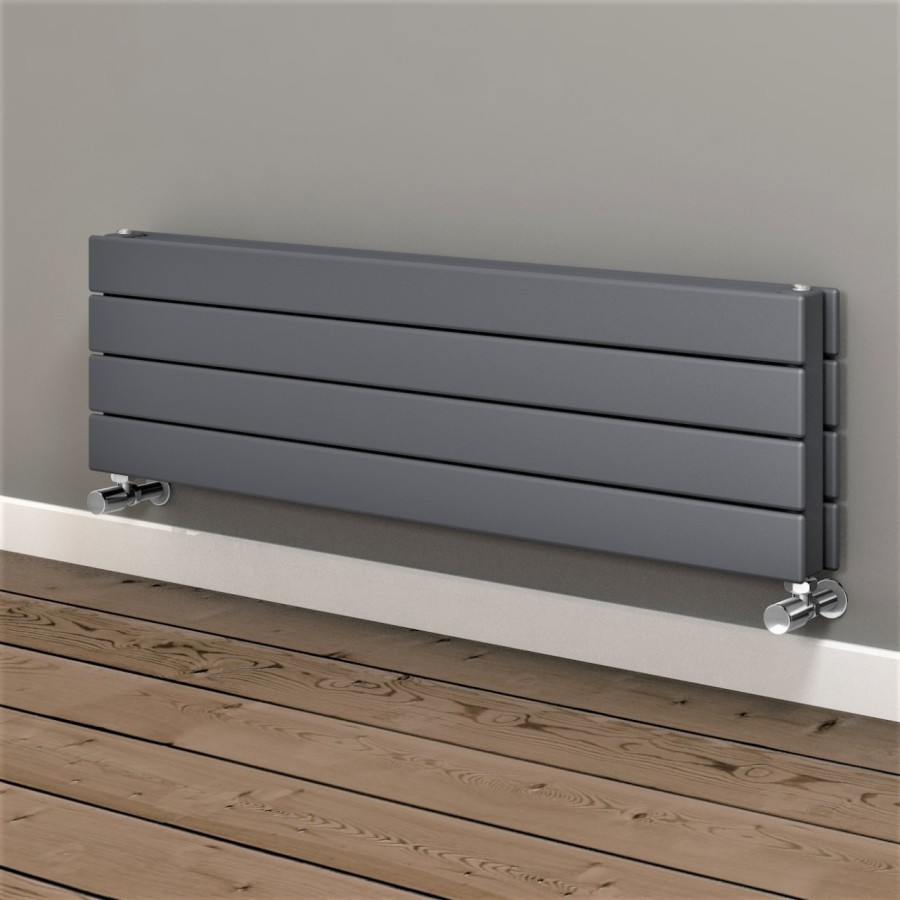

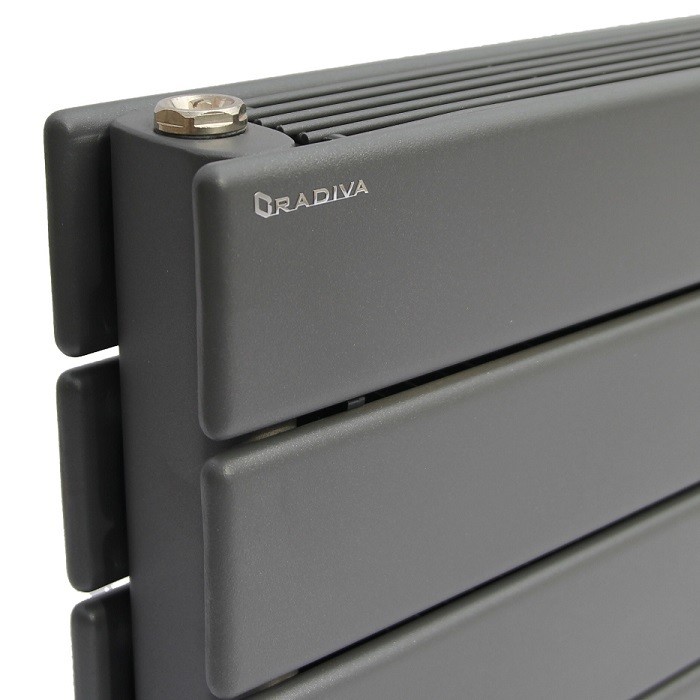

Type 21H Decorative Radiator 292x1000 Anthracite

TECHNICAL INFORMATION

• Model = 21H

• Material =Steel

• Height=292 mm

• Width=1000 mm

• Color/Coating=Anthracite

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=30x60 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=80 mm

• Wall to Center of Inlet=75 mm

• Wall Projection Distance=115 mm

• Radiator Thread Dimension=1/2"

• Water Volume=5,1 lt

• Weight=16,6 kg

• Boxed Weight=17,78 kg

• Box Size=35x106x11,6 cm

TAPPING OPTIONS

• Standard Entry=950 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1090mm

• Cross Up-Right / Down-Left=1090mm

• Cross Up-Left / Down-Right=1090mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 688 Kcal/h

• Heat Output 90/70-20° ?t=60°C=867Kcal/h

• Heat Output 55/45-20° ?t=30°C=353Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=800 Watt

• Heat Output 90/70-20°?t=60°C=1008 Watt

• Heat Output 55/45-20°?t=30°C=410 Watt


Btu

• Heat Output 75/65-20°?t=50°C=2730 Btu

• Heat Output 90/70-20°?t=60°C=3440 Btu

• Heat Output 55/45-20°?t=30°C=1398 Btu
