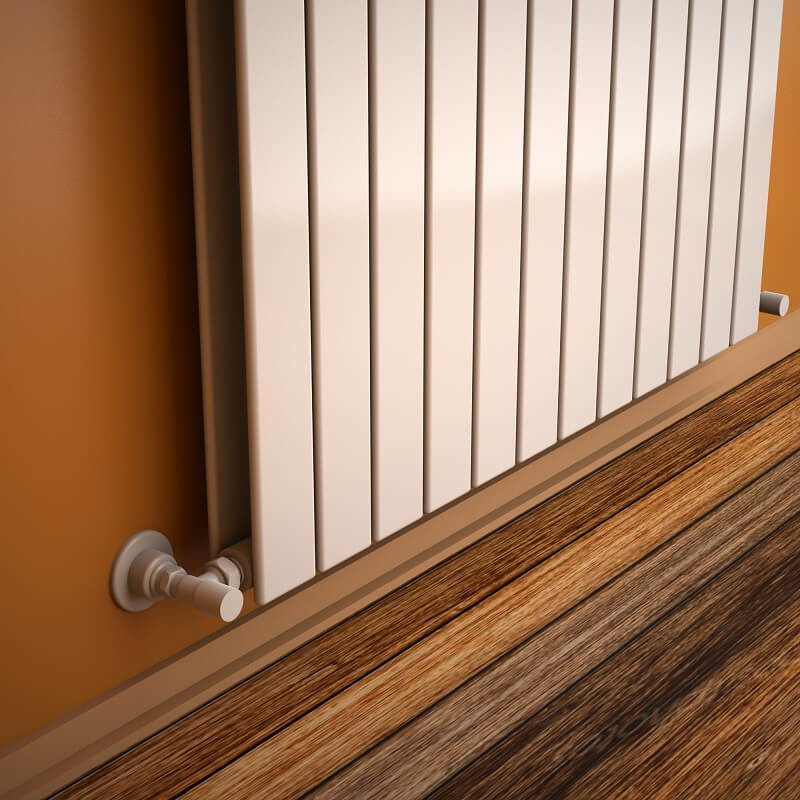

Type 20V Decorative Radiator 900x884 White

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=900 mm

• Width=884 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,4 lt

• Weight=36,2 kg

• Boxed Weight=38,89 kg

• Box Size=93x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =974 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =974 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1180 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1487Kcal/h

• Heat Output 55/45-20° ?t=30°C=605 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1372 Watt

• Heat Output 90/70-20°?t=60°C=1729 Watt

• Heat Output 55/45-20°?t=30°C=703 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4682 Btu

• Heat Output 90/70-20°?t=60°C=5900 Btu

• Heat Output 55/45-20°?t=30°C=2398 Btu
