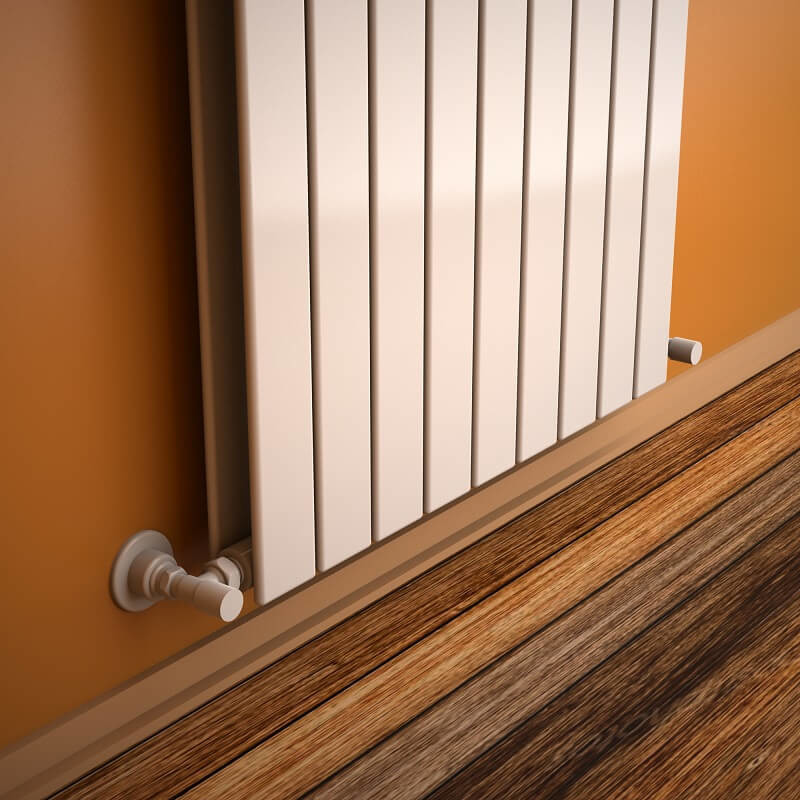

Type 20V Decorative Radiator 900x662 White

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=900 mm

• Width=662 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=9 Pieces

• Total Number of Profiles (Front + Back)=9+9 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=9,3 lt

• Weight=27,2 kg

• Boxed Weight=29,29 kg

• Box Size=71x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =752 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =752 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 885 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1116Kcal/h

• Heat Output 55/45-20° ?t=30°C=454 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1029 Watt

• Heat Output 90/70-20°?t=60°C=1297 Watt

• Heat Output 55/45-20°?t=30°C=527 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3511 Btu

• Heat Output 90/70-20°?t=60°C=4424 Btu

• Heat Output 55/45-20°?t=30°C=1798 Btu
