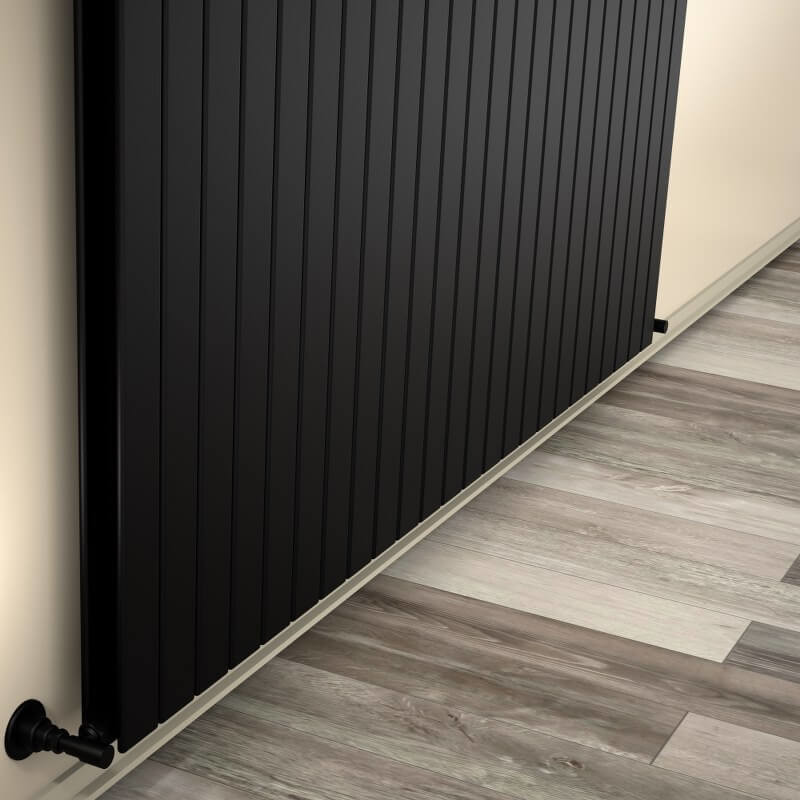

Type 20V Decorative Radiator 900x1772 Matte Black

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=900 mm

• Width=1772 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=24 Pieces

• Total Number of Profiles (Front + Back)=24+24 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=24,8 lt

• Weight=72,3 kg

• Boxed Weight=77,39 kg

• Box Size=182x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1862 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =1862 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2361 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2975Kcal/h

• Heat Output 55/45-20° ?t=30°C=1209 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2745 Watt

• Heat Output 90/70-20°?t=60°C=3459 Watt

• Heat Output 55/45-20°?t=30°C=1406 Watt


Btu

• Heat Output 75/65-20°?t=50°C=9366 Btu

• Heat Output 90/70-20°?t=60°C=11802 Btu

• Heat Output 55/45-20°?t=30°C=4796 Btu
