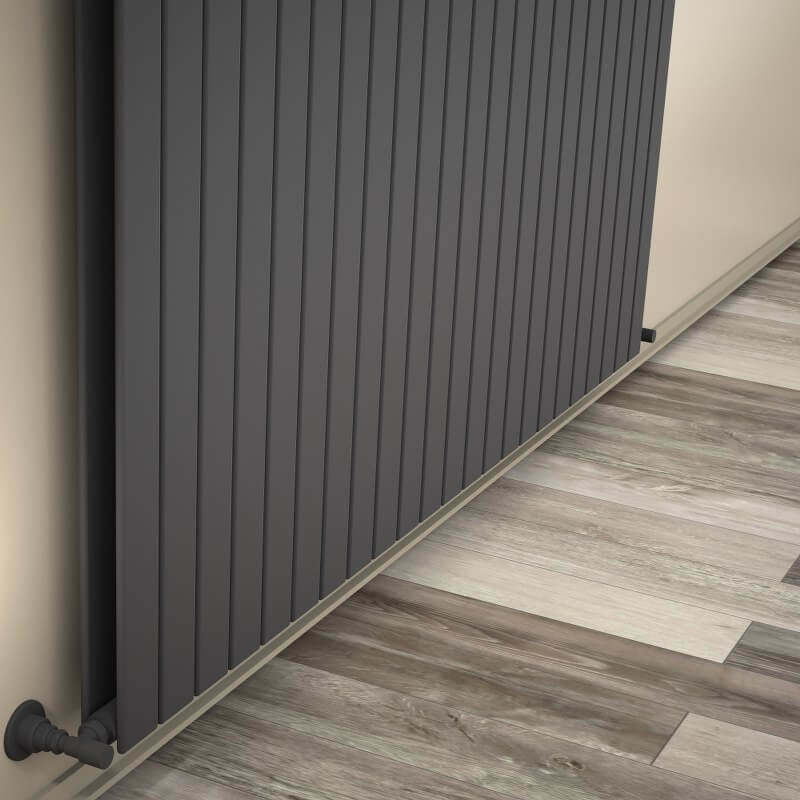

Type 20V Decorative Radiator 900x1698 Anthracite

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=900 mm

• Width=1698 mm

• Color/Coating=Anthracite

• Number of Sections=23 Pieces

• Total Number of Profiles (Front + Back)=23+23 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=23,8 lt

• Weight=69,3 kg

• Boxed Weight=74,19 kg

• Box Size=174x95x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1788 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =1788 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2263 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2852Kcal/h

• Heat Output 55/45-20° ?t=30°C=1159 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2631 Watt

• Heat Output 90/70-20°?t=60°C=3316 Watt

• Heat Output 55/45-20°?t=30°C=1348 Watt


Btu

• Heat Output 75/65-20°?t=50°C=8977 Btu

• Heat Output 90/70-20°?t=60°C=11312 Btu

• Heat Output 55/45-20°?t=30°C=4597 Btu
