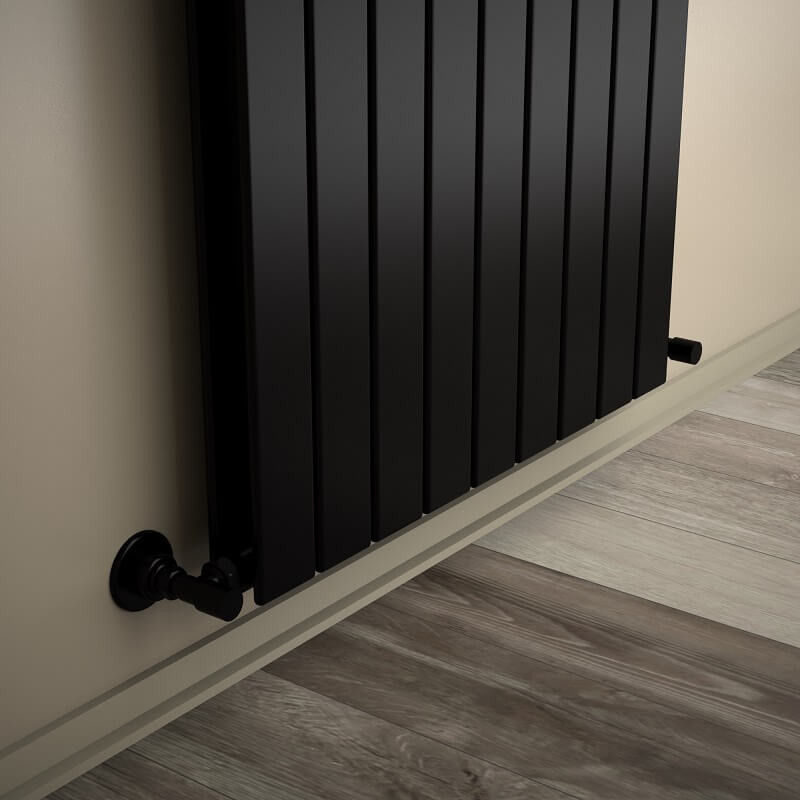

Type 20V Decorative Radiator 600x662 Matte Black

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=600 mm

• Width=662 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=9 Pieces

• Total Number of Profiles (Front + Back)=9+9 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,6 lt

• Weight=18,7 kg

• Boxed Weight=20,2 kg

• Box Size=71x65x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =752 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =752 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 611 Kcal/h

• Heat Output 90/70-20° ?t=60°C=770Kcal/h

• Heat Output 55/45-20° ?t=30°C=313 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=710 Watt

• Heat Output 90/70-20°?t=60°C=895 Watt

• Heat Output 55/45-20°?t=30°C=364 Watt


Btu

• Heat Output 75/65-20°?t=50°C=2423 Btu

• Heat Output 90/70-20°?t=60°C=3053 Btu

• Heat Output 55/45-20°?t=30°C=1241 Btu
