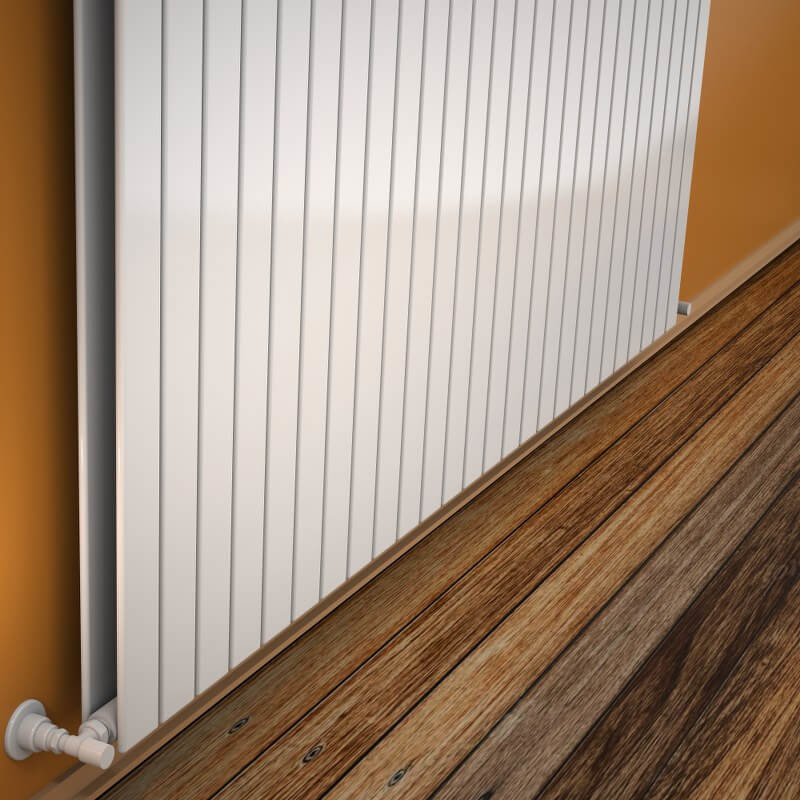

Type 20V Decorative Radiator 600x1920 White

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=600 mm

• Width=1920 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=26 Pieces

• Total Number of Profiles (Front + Back)=26+26 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=19,2 lt

• Weight=54 kg

• Boxed Weight=57,76 kg

• Box Size=196x65x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2010 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =2010 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1765 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2224Kcal/h

• Heat Output 55/45-20° ?t=30°C=904 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2052 Watt

• Heat Output 90/70-20°?t=60°C=2586 Watt

• Heat Output 55/45-20°?t=30°C=1051 Watt


Btu

• Heat Output 75/65-20°?t=50°C=7002 Btu

• Heat Output 90/70-20°?t=60°C=8823 Btu

• Heat Output 55/45-20°?t=30°C=3586 Btu
