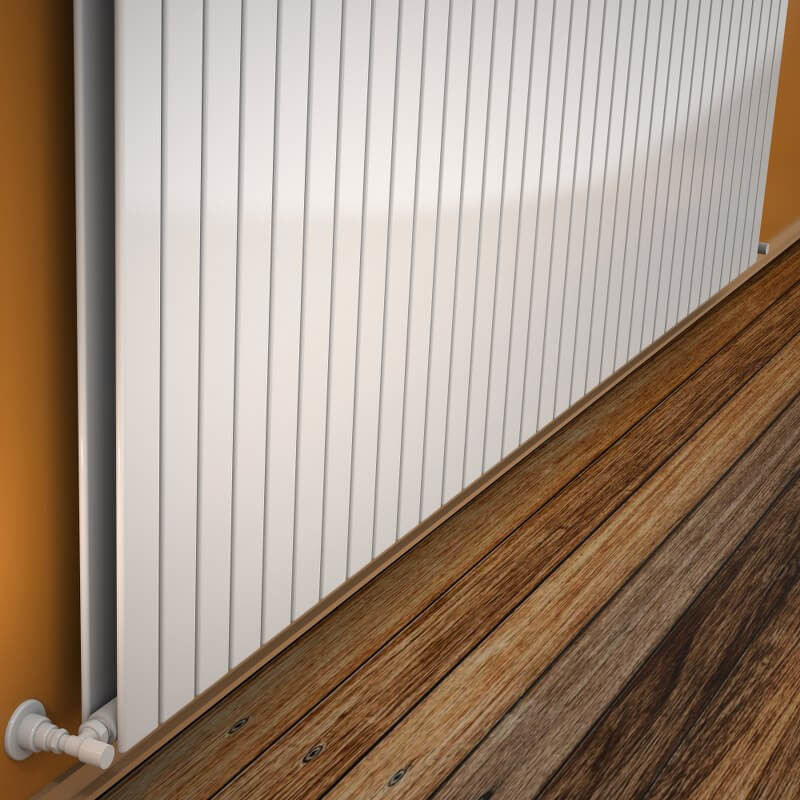

Type 20V Decorative Radiator 500x2512 White

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=500 mm

• Width=2512 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=34 Pieces

• Total Number of Profiles (Front + Back)=34+34 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=21,7 lt

• Weight=59,9 kg

• Boxed Weight=63,97 kg

• Box Size=256x55x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2602 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =2602 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1948 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2455Kcal/h

• Heat Output 55/45-20° ?t=30°C=998 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2264 Watt

• Heat Output 90/70-20°?t=60°C=2853 Watt

• Heat Output 55/45-20°?t=30°C=1160 Watt


Btu

• Heat Output 75/65-20°?t=50°C=7725 Btu

• Heat Output 90/70-20°?t=60°C=9734 Btu

• Heat Output 55/45-20°?t=30°C=3956 Btu
