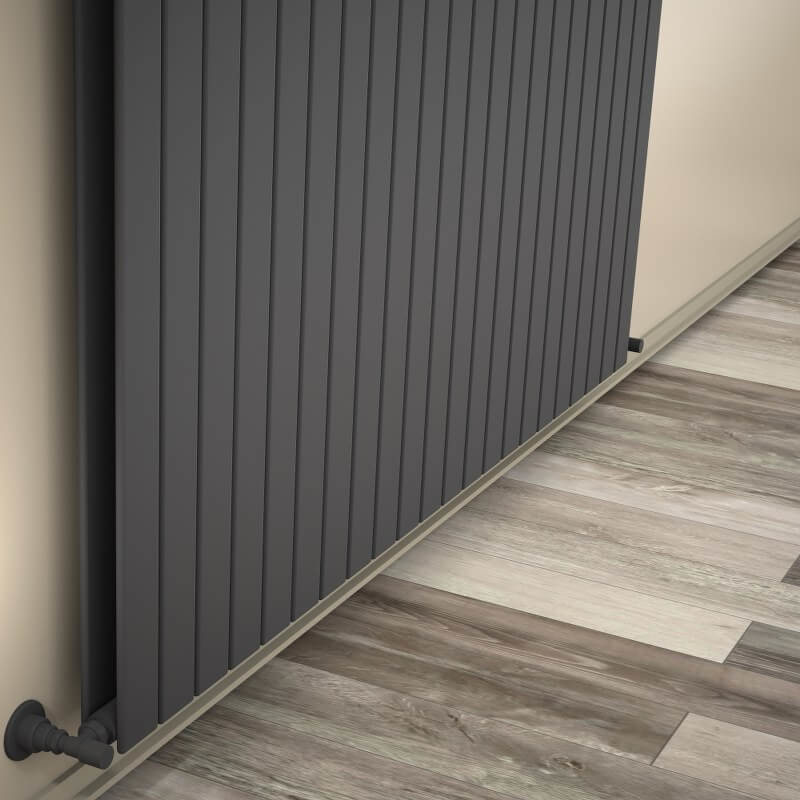

Type 20V Decorative Radiator 500x1624 Anthracite

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=500 mm

• Width=1624 mm

• Color/Coating=Anthracite

• Number of Sections=22 Pieces

• Total Number of Profiles (Front + Back)=22+22 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=14 lt

• Weight=38,8 kg

• Boxed Weight=41,54 kg

• Box Size=167x55x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1714 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =1714 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1260 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1588Kcal/h

• Heat Output 55/45-20° ?t=30°C=646 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1465 Watt

• Heat Output 90/70-20°?t=60°C=1846 Watt

• Heat Output 55/45-20°?t=30°C=751 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4999 Btu

• Heat Output 90/70-20°?t=60°C=6299 Btu

• Heat Output 55/45-20°?t=30°C=2560 Btu
