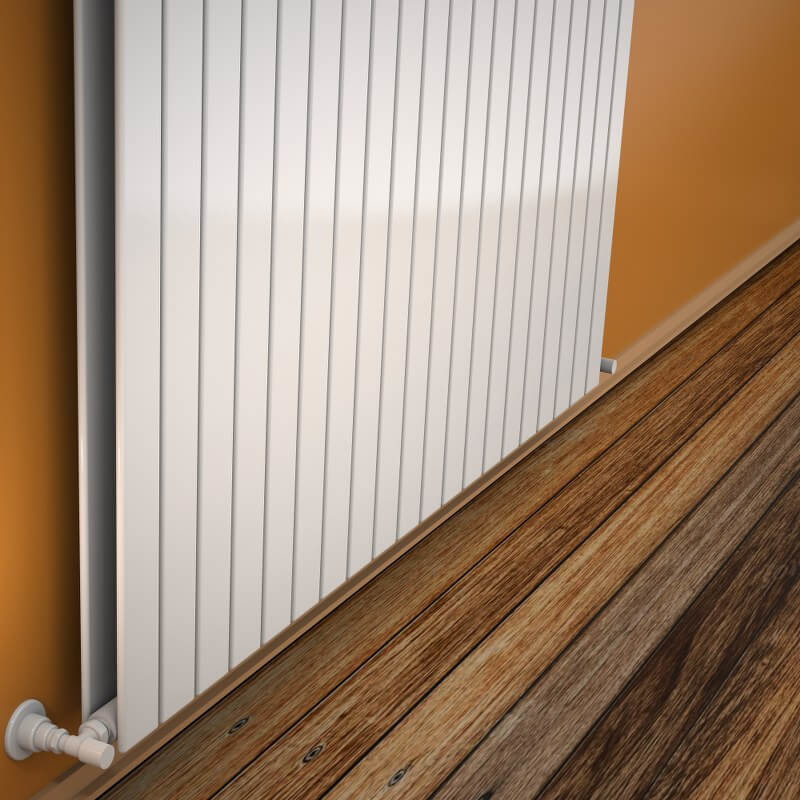

Type 20V Decorative Radiator 500x1476 White

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=500 mm

• Width=1476 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=20 Pieces

• Total Number of Profiles (Front + Back)=20+20 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,8 lt

• Weight=35,3 kg

• Boxed Weight=37,82 kg

• Box Size=152x55x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =1566 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =1566 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1146 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1444Kcal/h

• Heat Output 55/45-20° ?t=30°C=587 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1332 Watt

• Heat Output 90/70-20°?t=60°C=1679 Watt

• Heat Output 55/45-20°?t=30°C=682 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4545 Btu

• Heat Output 90/70-20°?t=60°C=5727 Btu

• Heat Output 55/45-20°?t=30°C=2328 Btu
