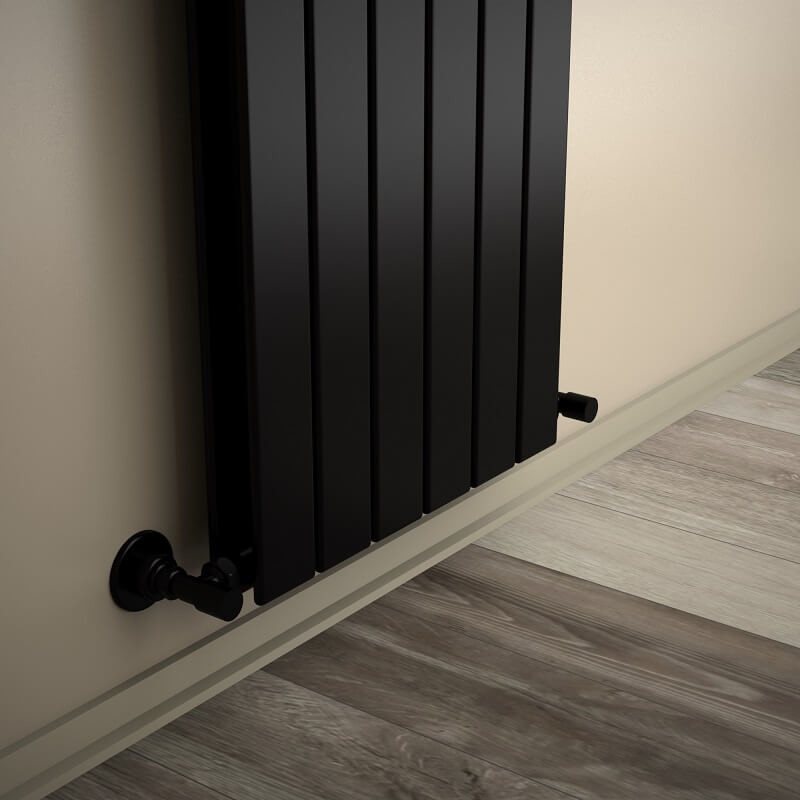

Type 20V Decorative Radiator 400x440 Matte Black

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=400 mm

• Width=440 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=6 Pieces

• Total Number of Profiles (Front + Back)=6+6 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=3,2 lt

• Weight=8,8 kg

• Boxed Weight=9,63 kg

• Box Size=48x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =530 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =530 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 279 Kcal/h

• Heat Output 90/70-20° ?t=60°C=352Kcal/h

• Heat Output 55/45-20° ?t=30°C=143 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=324 Watt

• Heat Output 90/70-20°?t=60°C=409 Watt

• Heat Output 55/45-20°?t=30°C=166 Watt


Btu

• Heat Output 75/65-20°?t=50°C=1106 Btu

• Heat Output 90/70-20°?t=60°C=1394 Btu

• Heat Output 55/45-20°?t=30°C=567 Btu
