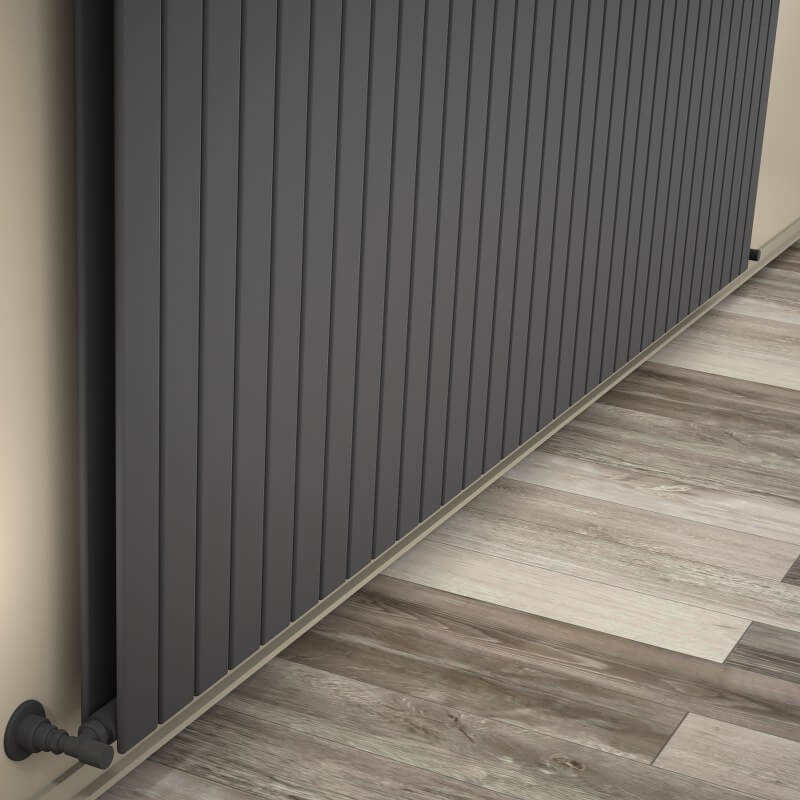

Type 20V Decorative Radiator 400x2438 Anthracite

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=400 mm

• Width=2438 mm

• Color/Coating=Anthracite

• Number of Sections=33 Pieces

• Total Number of Profiles (Front + Back)=33+33 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=17,8 lt

• Weight=47,9 kg

• Boxed Weight=51,13 kg

• Box Size=248x45x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =2528 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =2528 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1531 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1930Kcal/h

• Heat Output 55/45-20° ?t=30°C=784 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1780 Watt

• Heat Output 90/70-20°?t=60°C=2243 Watt

• Heat Output 55/45-20°?t=30°C=912 Watt


Btu

• Heat Output 75/65-20°?t=50°C=6074 Btu

• Heat Output 90/70-20°?t=60°C=7654 Btu

• Heat Output 55/45-20°?t=30°C=3110 Btu
