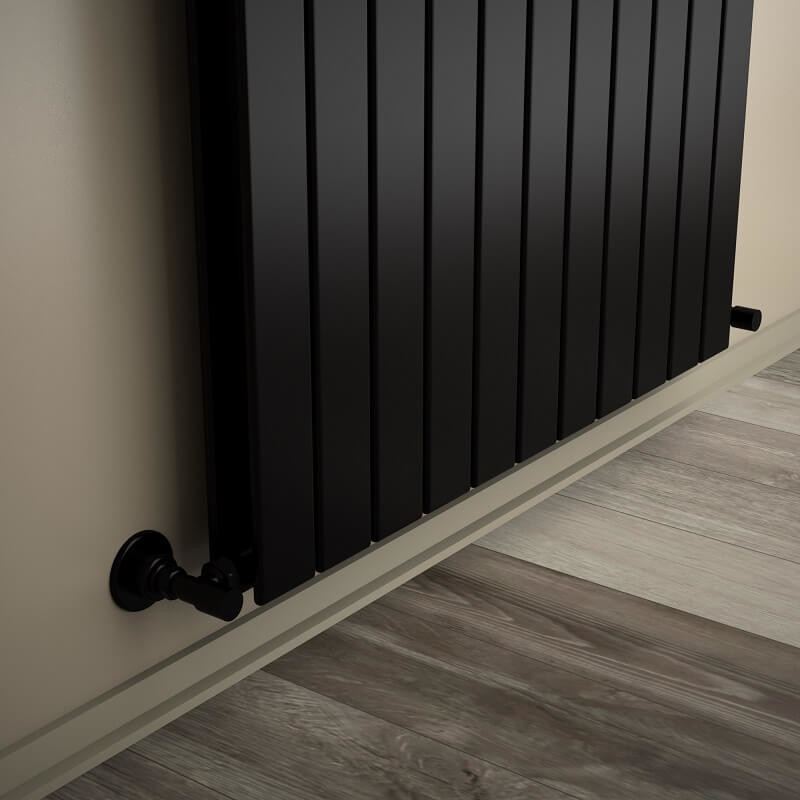

Type 20V Decorative Radiator 2200x810 Matte Black

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=2200 mm

• Width=810 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=11 Pieces

• Total Number of Profiles (Front + Back)=11+11 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=25,6 lt

• Weight=77,8 kg

• Boxed Weight=83,45 kg

• Box Size=85x225x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =900 mm

• Standard Entry2 =2150 mm

• Standard Entry Cross =900 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2302 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2901Kcal/h

• Heat Output 55/45-20° ?t=30°C=1179 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2676 Watt

• Heat Output 90/70-20°?t=60°C=3372 Watt

• Heat Output 55/45-20°?t=30°C=1371 Watt


Btu

• Heat Output 75/65-20°?t=50°C=9131 Btu

• Heat Output 90/70-20°?t=60°C=11506 Btu

• Heat Output 55/45-20°?t=30°C=4676 Btu
