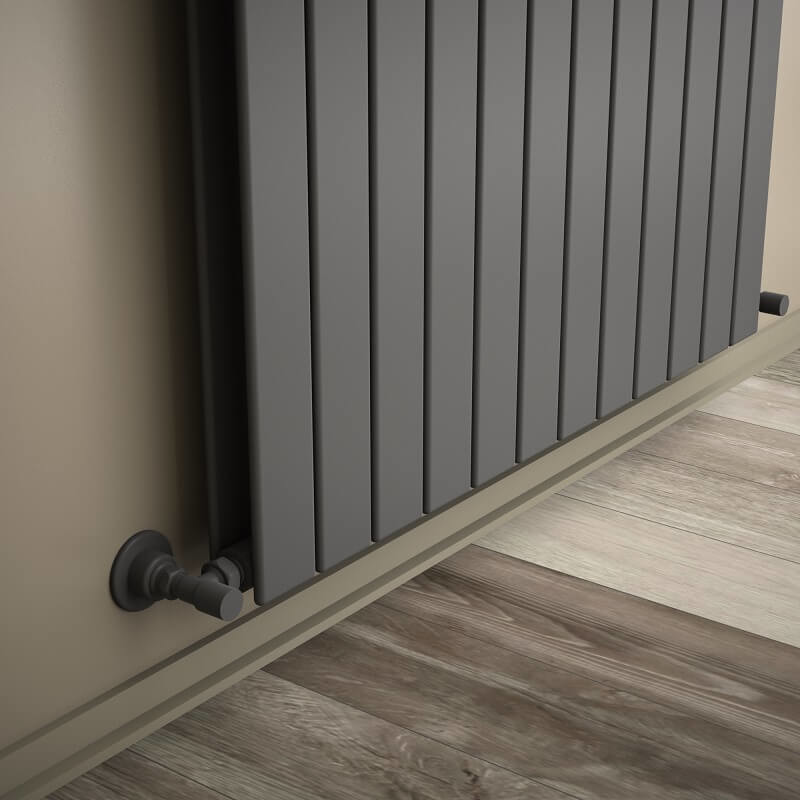

Type 20V Decorative Radiator 2100x884 Anthracite

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=2100 mm

• Width=884 mm

• Color/Coating=Anthracite

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+12 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=26,7 lt

• Weight=81,1 kg

• Boxed Weight=86,97 kg

• Box Size=93x215x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =974 mm

• Standard Entry2 =2050 mm

• Standard Entry Cross =974 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2422 Kcal/h

• Heat Output 90/70-20° ?t=60°C=3052Kcal/h

• Heat Output 55/45-20° ?t=30°C=1241 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2816 Watt

• Heat Output 90/70-20°?t=60°C=3549 Watt

• Heat Output 55/45-20°?t=30°C=1442 Watt


Btu

• Heat Output 75/65-20°?t=50°C=9609 Btu

• Heat Output 90/70-20°?t=60°C=12108 Btu

• Heat Output 55/45-20°?t=30°C=4920 Btu
