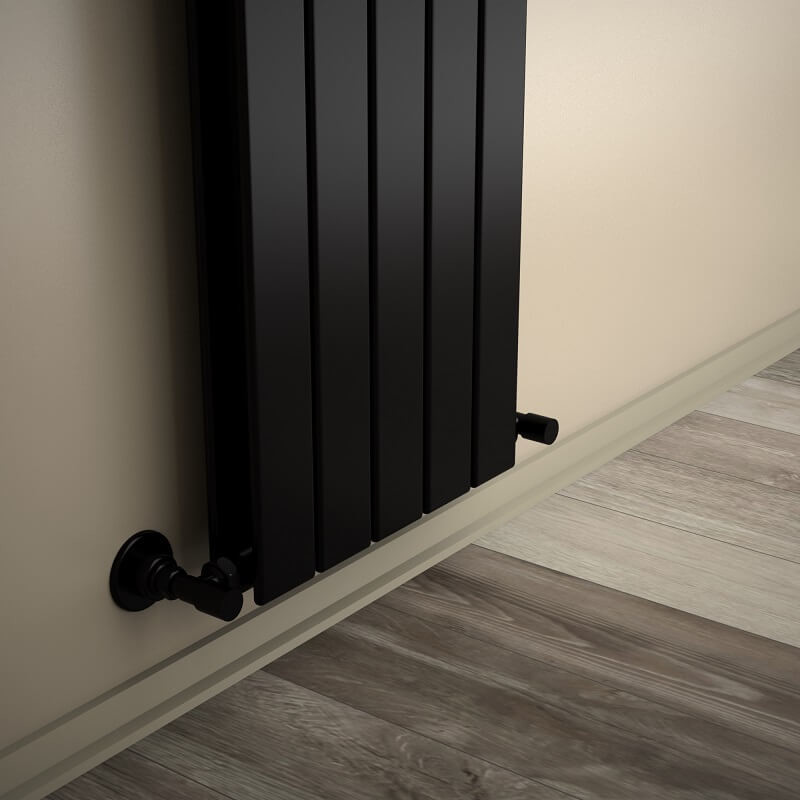

Type 20V Decorative Radiator 1800x366 Matte Black

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=1800 mm

• Width=366 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=5 Pieces

• Total Number of Profiles (Front + Back)=5+5 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=9,6 lt

• Weight=29,2 kg

• Boxed Weight=31,48 kg

• Box Size=41x185x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =456 mm

• Standard Entry2 =1750 mm

• Standard Entry Cross =456 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 893 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1126Kcal/h

• Heat Output 55/45-20° ?t=30°C=458 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1038 Watt

• Heat Output 90/70-20°?t=60°C=1308 Watt

• Heat Output 55/45-20°?t=30°C=532 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3542 Btu

• Heat Output 90/70-20°?t=60°C=4463 Btu

• Heat Output 55/45-20°?t=30°C=1814 Btu
