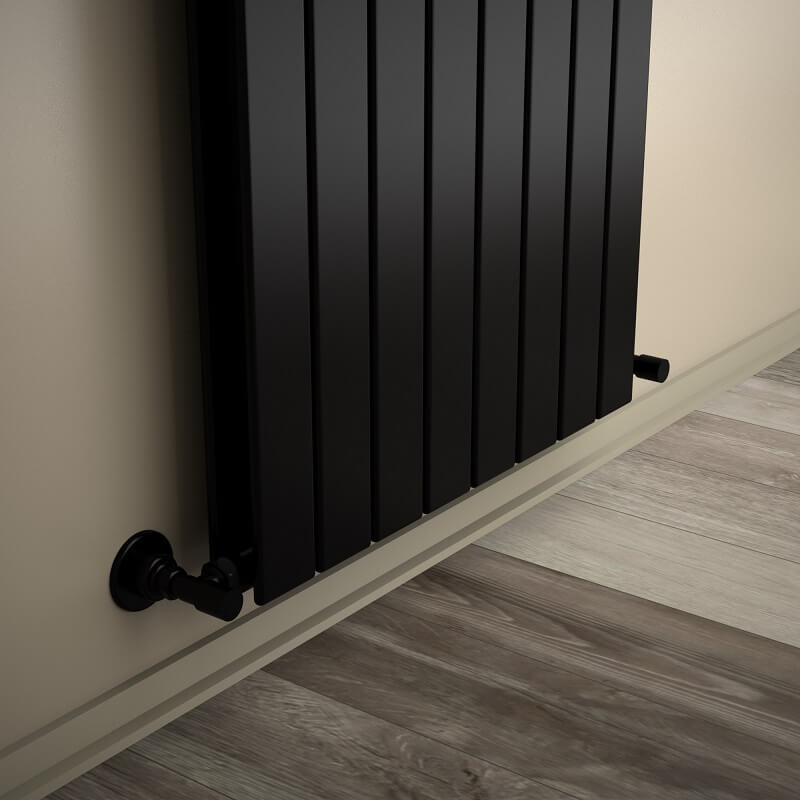

Type 20V Decorative Radiator 1600x588 Matte Black

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=1600 mm

• Width=588 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13,8 lt

• Weight=41,6 kg

• Boxed Weight=44,73 kg

• Box Size=63x165x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =678 mm

• Standard Entry2 =1550 mm

• Standard Entry Cross =678 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1297 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1635Kcal/h

• Heat Output 55/45-20° ?t=30°C=665 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1507 Watt

• Heat Output 90/70-20°?t=60°C=1899 Watt

• Heat Output 55/45-20°?t=30°C=772 Watt


Btu

• Heat Output 75/65-20°?t=50°C=5142 Btu

• Heat Output 90/70-20°?t=60°C=6479 Btu

• Heat Output 55/45-20°?t=30°C=2633 Btu
