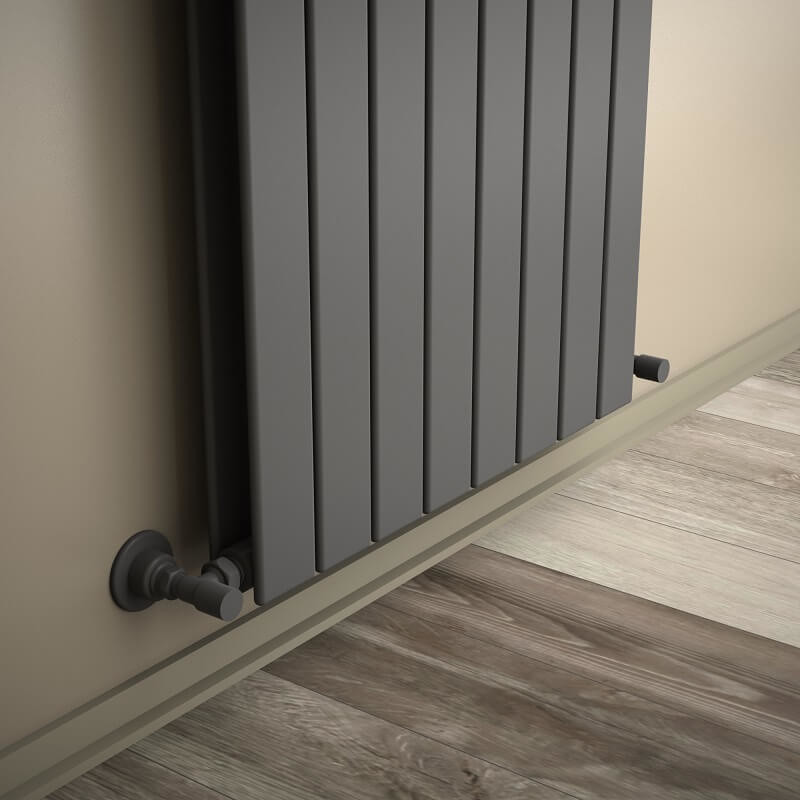

Type 20V Decorative Radiator 1500x588 Anthracite

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=1500 mm

• Width=588 mm

• Color/Coating=Anthracite

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13 lt

• Weight=39,1 kg

• Boxed Weight=42,05 kg

• Box Size=63x155x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =678 mm

• Standard Entry2 =1450 mm

• Standard Entry Cross =678 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1229 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1549Kcal/h

• Heat Output 55/45-20° ?t=30°C=630 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1428 Watt

• Heat Output 90/70-20°?t=60°C=1800 Watt

• Heat Output 55/45-20°?t=30°C=732 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4873 Btu

• Heat Output 90/70-20°?t=60°C=6140 Btu

• Heat Output 55/45-20°?t=30°C=2495 Btu
