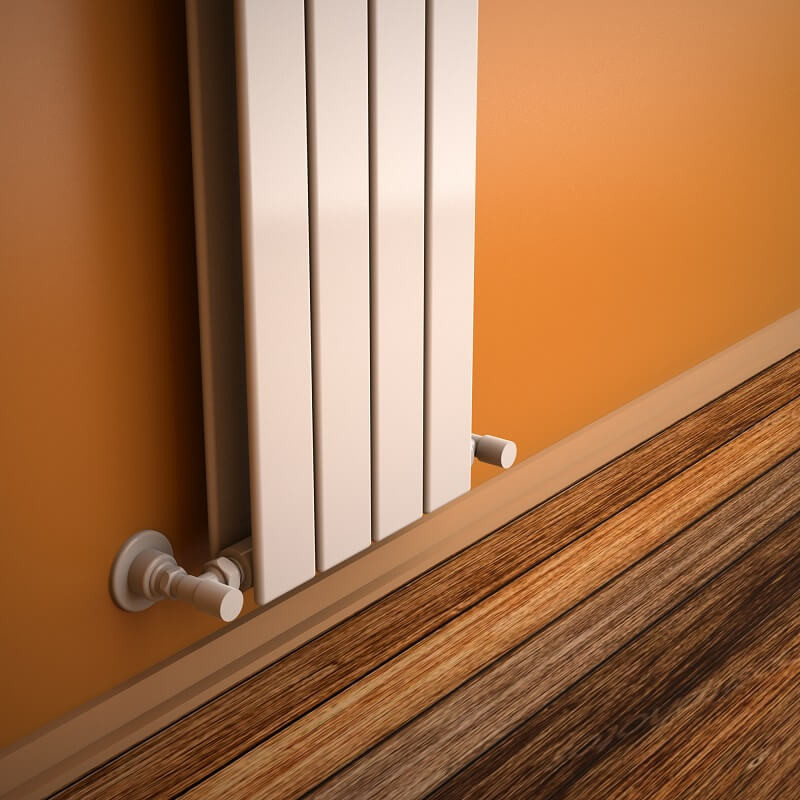

Type 20V Decorative Radiator 1500x292 White

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=1500 mm

• Width=292 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,5 lt

• Weight=19,6 kg

• Boxed Weight=21,22 kg

• Box Size=34x155x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =382 mm

• Standard Entry2 =1450 mm

• Standard Entry Cross =382 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 615 Kcal/h

• Heat Output 90/70-20° ?t=60°C=775Kcal/h

• Heat Output 55/45-20° ?t=30°C=315 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=714 Watt

• Heat Output 90/70-20°?t=60°C=900 Watt

• Heat Output 55/45-20°?t=30°C=366 Watt


Btu

• Heat Output 75/65-20°?t=50°C=2437 Btu

• Heat Output 90/70-20°?t=60°C=3071 Btu

• Heat Output 55/45-20°?t=30°C=1248 Btu
