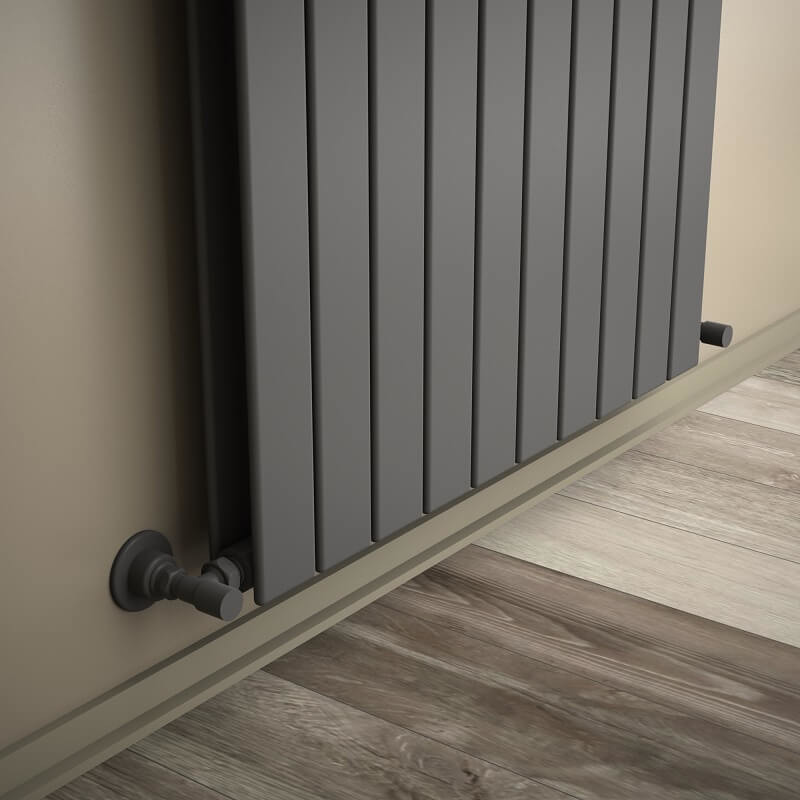

Type 20V Decorative Radiator 1200x736 Anthracite

TECHNICAL INFORMATION

• Model = 20V

• Material =Steel

• Height=1200 mm

• Width=736 mm

• Color/Coating=Anthracite

• Number of Sections=10 Pieces

• Total Number of Profiles (Front + Back)=10+10 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=13,3 lt

• Weight=39,5 kg

• Boxed Weight=42,45 kg

• Box Size=78x125x9,6 cm

TAPPING OPTIONS

• Standard Entry1 =826 mm

• Standard Entry2 =1150 mm

• Standard Entry Cross =826 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1269 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1599Kcal/h

• Heat Output 55/45-20° ?t=30°C=650 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1475 Watt

• Heat Output 90/70-20°?t=60°C=1859 Watt

• Heat Output 55/45-20°?t=30°C=756 Watt


Btu

• Heat Output 75/65-20°?t=50°C=5033 Btu

• Heat Output 90/70-20°?t=60°C=6342 Btu

• Heat Output 55/45-20°?t=30°C=2577 Btu
