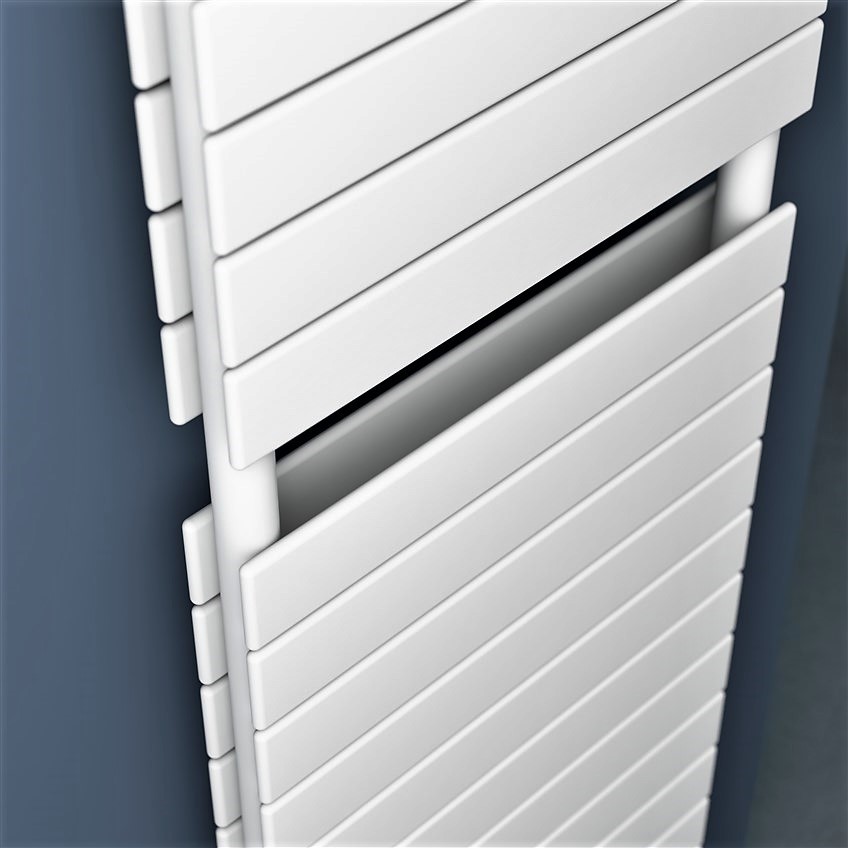

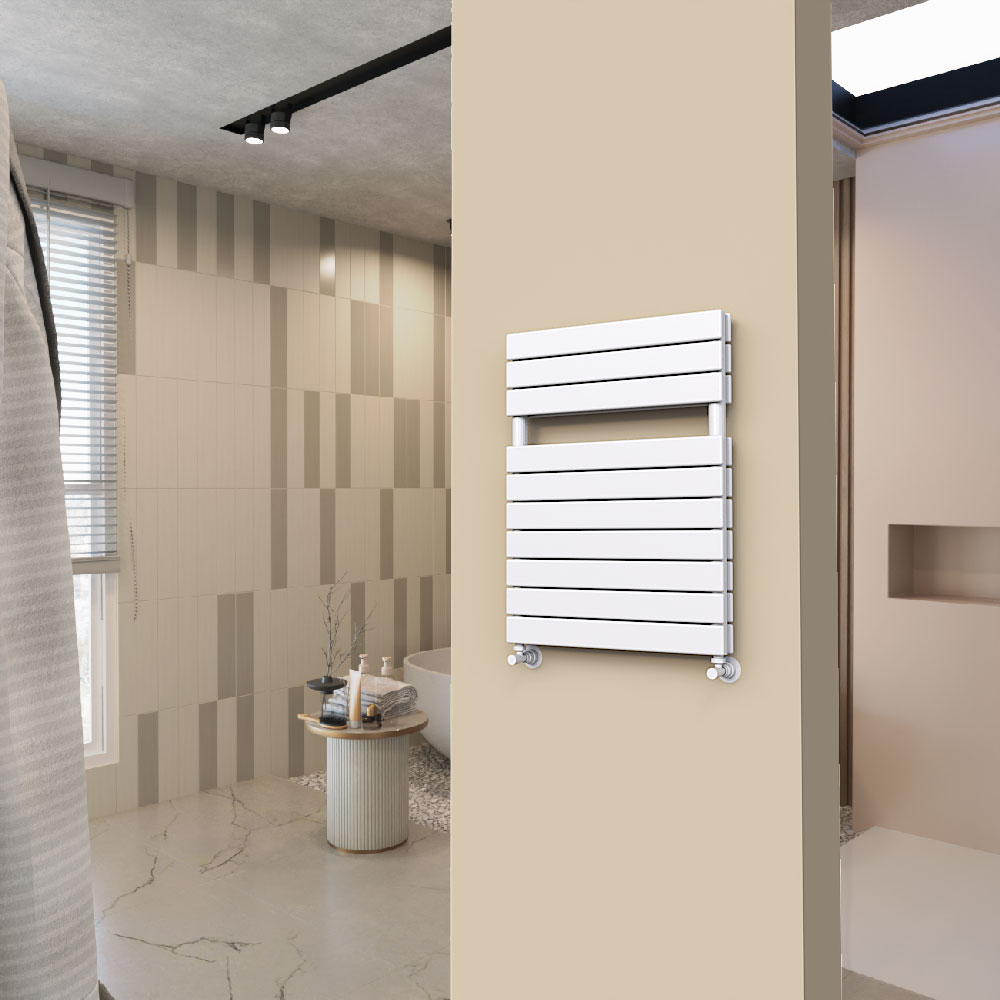

Tip 20H Decorative Towel Rail 600x810 White

DECORATİVE TOWEL WARMERS TECHNICAL INFORMATION

• Model = Tip 20H

• Working system = Boiler, Central Heating System, Heat Pump (Hydronic Systems)

• Material = Steel

• Width = 600 mm

• Height = 810 mm

• Color/Coating = Matt White

• Tapping Distance = 550 mm

• Maximum Working Pressure = 4,5 bar

• Wall to Center of Inlet = 64 mm

• Wall Projection Distance = 93 mm

• Towel Warmer Thread Dimension = 1/2"

• Water Volume = 7,3 lt

• Weight = 20,4 kg

• Boxed Weight = 21,5 kg

• Box Size = 64x86x11 cm

• Wall Mount Set Type = Metal

• Wall Mount Set Color = Same Color As The Product

• Assembly Set Is Included In The Price,Included in the Box.

• Prices do not include valves pls. refer to page "Valves" to see our range

• Prices do not include pipe sleeves pls. refer to page "Accessories" to see our range

Heat Output

Kcal/h

• Heat Output 75/65-20° ?t=50°C = 603 Kcal/h

• Heat Output 90/70-20° ?t=60°C = 760 Kcal/h

• Heat Output 55/45-20° ?t=30°C = 309 Kcal/h

Watts

• Heat Output 75/65-20° ?t=50°C = 701 Watt

• Heat Output 90/70-20° ?t=60°C = 884 Watt

• Heat Output 55/45-20° ?t=30°C = 359 Watt

Btu

• Heat Output 75/65-20° ?t=50°C = 2392 Btu

• Heat Output 90/70-20° ?t=60°C = 3014 Btu

• Heat Output 55/45-20° ?t=30°C = 1225 Btu
