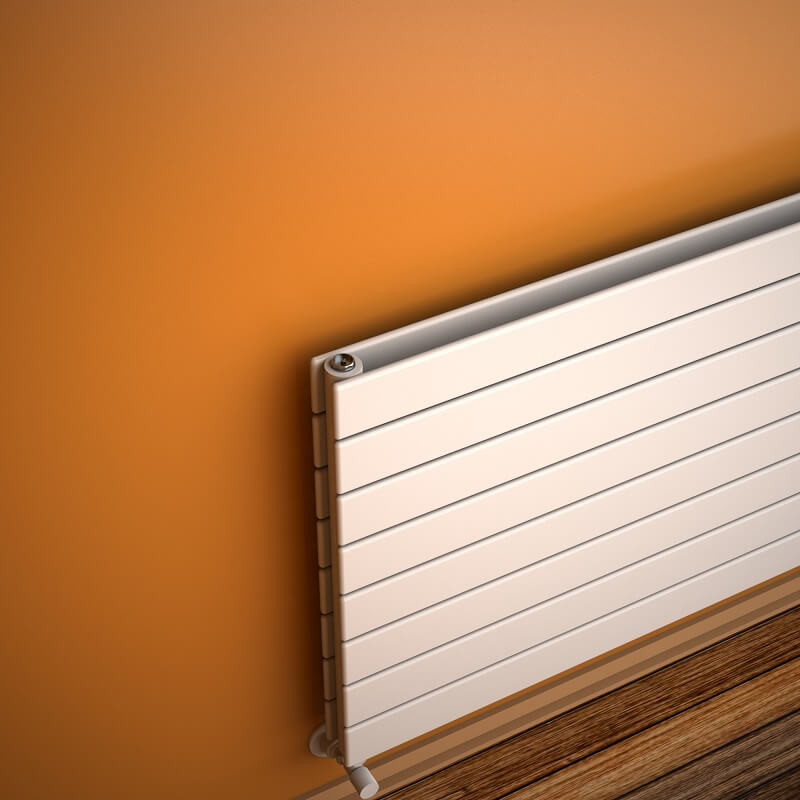

Type 20H Decorative Radiator 588x2600 White

TECHNICAL INFORMATION

• Model = 20H

• Material =Steel

• Height=588 mm

• Width=2600 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=21,8 lt

• Weight=66,6 kg

• Boxed Weight=71,49 kg

• Box Size=64x266x9,6 cm

TAPPING OPTIONS

• Standard Entry=2550 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2690mm

• Cross Up-Right / Down-Left=2690mm

• Cross Up-Left / Down-Right=2690mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2254 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2841Kcal/h

• Heat Output 55/45-20° ?t=30°C=1155Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2620 Watt

• Heat Output 90/70-20°?t=60°C=3302 Watt

• Heat Output 55/45-20°?t=30°C=1342 Watt


Btu

• Heat Output 75/65-20°?t=50°C=8940 Btu

• Heat Output 90/70-20°?t=60°C=11265 Btu

• Heat Output 55/45-20°?t=30°C=4578 Btu
