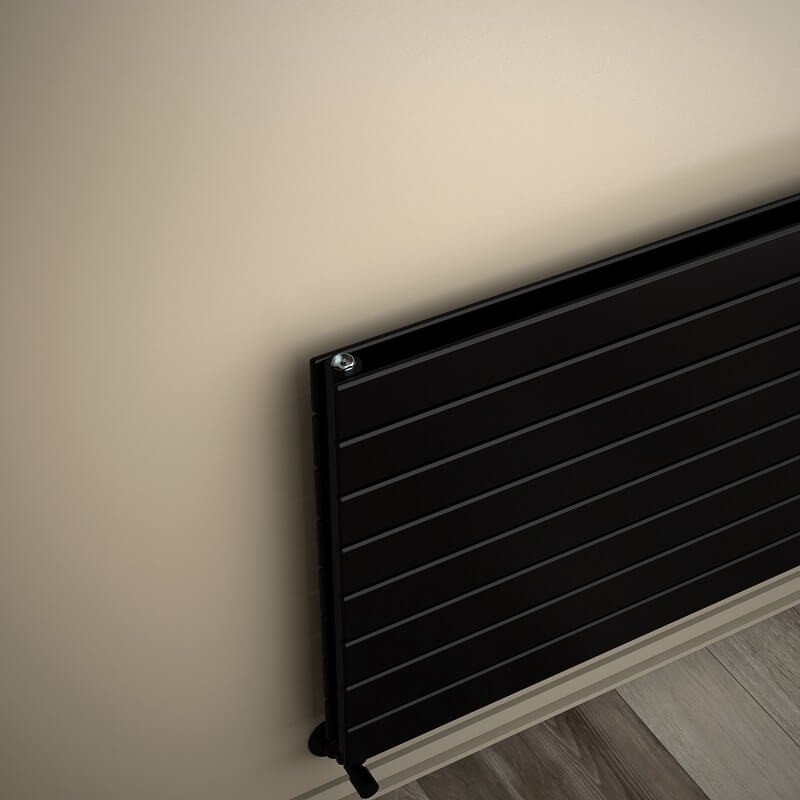

Type 20H Decorative Radiator 588x1300 Matte Black

TECHNICAL INFORMATION

• Model = 20H

• Material =Steel

• Height=588 mm

• Width=1300 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=8 Pieces

• Total Number of Profiles (Front + Back)=8+8 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=11,4 lt

• Weight=34,1 kg

• Boxed Weight=36,7 kg

• Box Size=64x136x9,6 cm

TAPPING OPTIONS

• Standard Entry=1250 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1390mm

• Cross Up-Right / Down-Left=1390mm

• Cross Up-Left / Down-Right=1390mm

• Side - Right=550mm

• Side - Left=550mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1127 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1421Kcal/h

• Heat Output 55/45-20° ?t=30°C=578Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1310 Watt

• Heat Output 90/70-20°?t=60°C=1651 Watt

• Heat Output 55/45-20°?t=30°C=671 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4470 Btu

• Heat Output 90/70-20°?t=60°C=5633 Btu

• Heat Output 55/45-20°?t=30°C=2289 Btu
