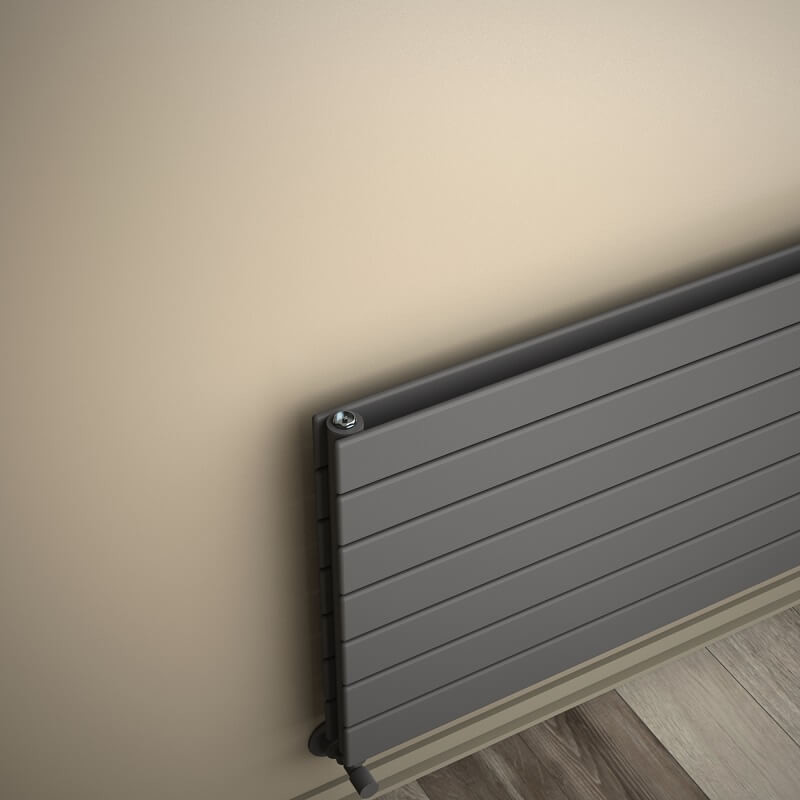

Type 20H Decorative Radiator 514x2000 Anthracite

TECHNICAL INFORMATION

• Model = 20H

• Material =Steel

• Height=514 mm

• Width=2000 mm

• Color/Coating=Anthracite

• Number of Sections=7 Pieces

• Total Number of Profiles (Front + Back)=7+7 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=14,9 lt

• Weight=45,2 kg

• Boxed Weight=48,59 kg

• Box Size=57x206x9,6 cm

TAPPING OPTIONS

• Standard Entry=1950 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=2090mm

• Cross Up-Right / Down-Left=2090mm

• Cross Up-Left / Down-Right=2090mm

• Side - Right=450mm

• Side - Left=450mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1562 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1969Kcal/h

• Heat Output 55/45-20° ?t=30°C=800Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1816 Watt

• Heat Output 90/70-20°?t=60°C=2289 Watt

• Heat Output 55/45-20°?t=30°C=930 Watt


Btu

• Heat Output 75/65-20°?t=50°C=6197 Btu

• Heat Output 90/70-20°?t=60°C=7809 Btu

• Heat Output 55/45-20°?t=30°C=3173 Btu
