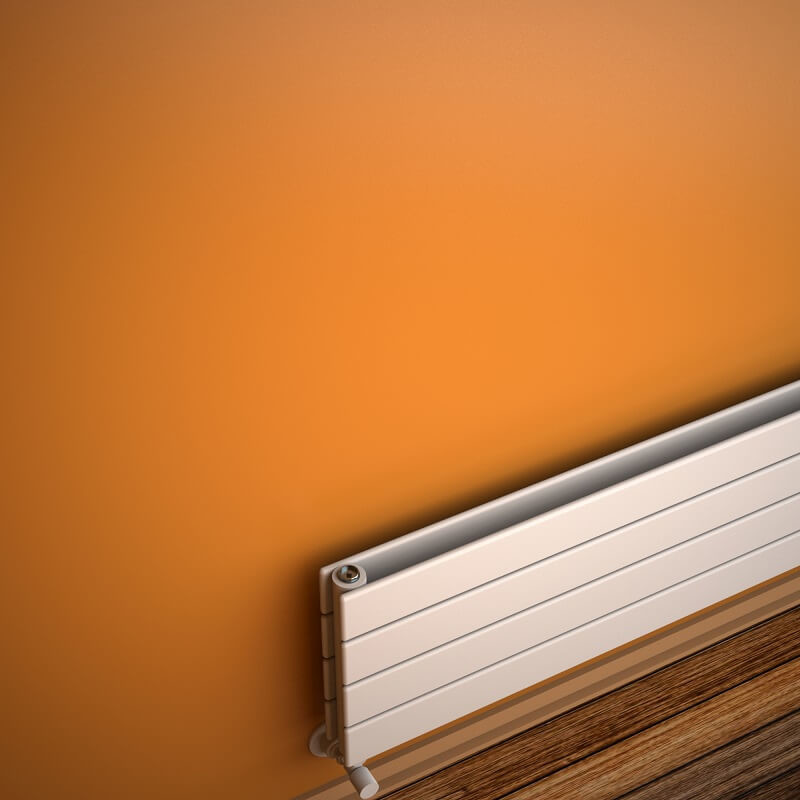

Type 20H Decorative Radiator 292x1500 White

TECHNICAL INFORMATION

• Model = 20H

• Material =Steel

• Height=292 mm

• Width=1500 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=4 Pieces

• Total Number of Profiles (Front + Back)=4+4 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=58 mm

• Wall to Center of Inlet=64 mm

• Wall Projection Distance=93 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,5 lt

• Weight=19,6 kg

• Boxed Weight=21,22 kg

• Box Size=35x156x9,6 cm

TAPPING OPTIONS

• Standard Entry=1450 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

• Sides / Bottom Right-Left=1590mm

• Cross Up-Right / Down-Left=1590mm

• Cross Up-Left / Down-Right=1590mm

• Side - Right=250mm

• Side - Left=250mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 755 Kcal/h

• Heat Output 90/70-20° ?t=60°C=952Kcal/h

• Heat Output 55/45-20° ?t=30°C=387Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=877 Watt

• Heat Output 90/70-20°?t=60°C=1106 Watt

• Heat Output 55/45-20°?t=30°C=450 Watt


Btu

• Heat Output 75/65-20°?t=50°C=2993 Btu

• Heat Output 90/70-20°?t=60°C=3772 Btu

• Heat Output 55/45-20°?t=30°C=1533 Btu
