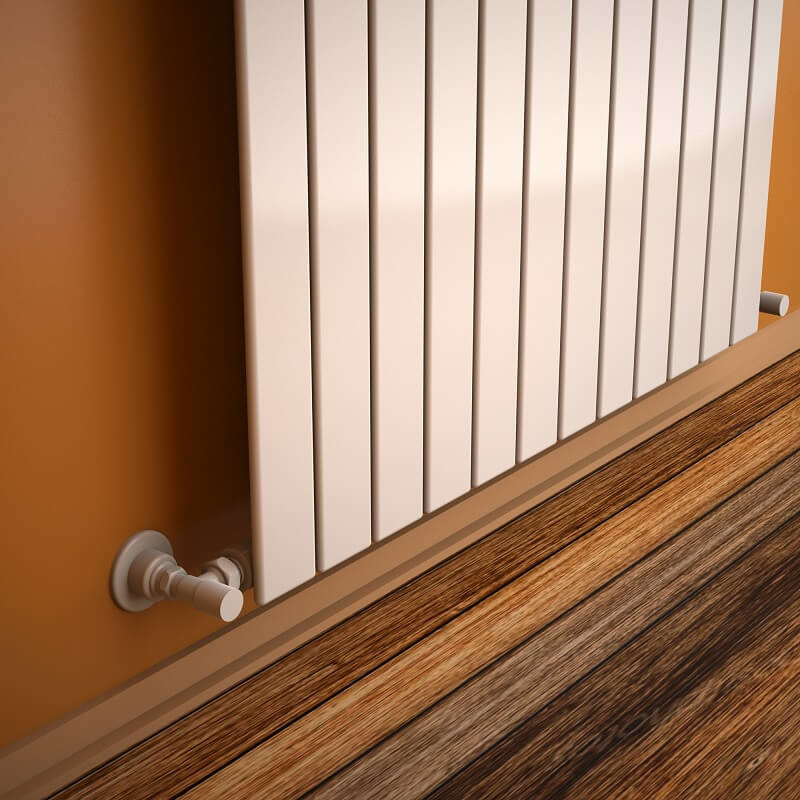

Type 10V Decorative Radiator 900x884 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=900 mm

• Width=884 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=12 Pieces

• Total Number of Profiles (Front + Back)=12+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=6,9 lt

• Weight=19,3 kg

• Boxed Weight=21,99 kg

• Box Size=93x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =974 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =974 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 827 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1043Kcal/h

• Heat Output 55/45-20° ?t=30°C=424 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=961 Watt

• Heat Output 90/70-20°?t=60°C=1211 Watt

• Heat Output 55/45-20°?t=30°C=493 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3279 Btu

• Heat Output 90/70-20°?t=60°C=4132 Btu

• Heat Output 55/45-20°?t=30°C=1679 Btu
