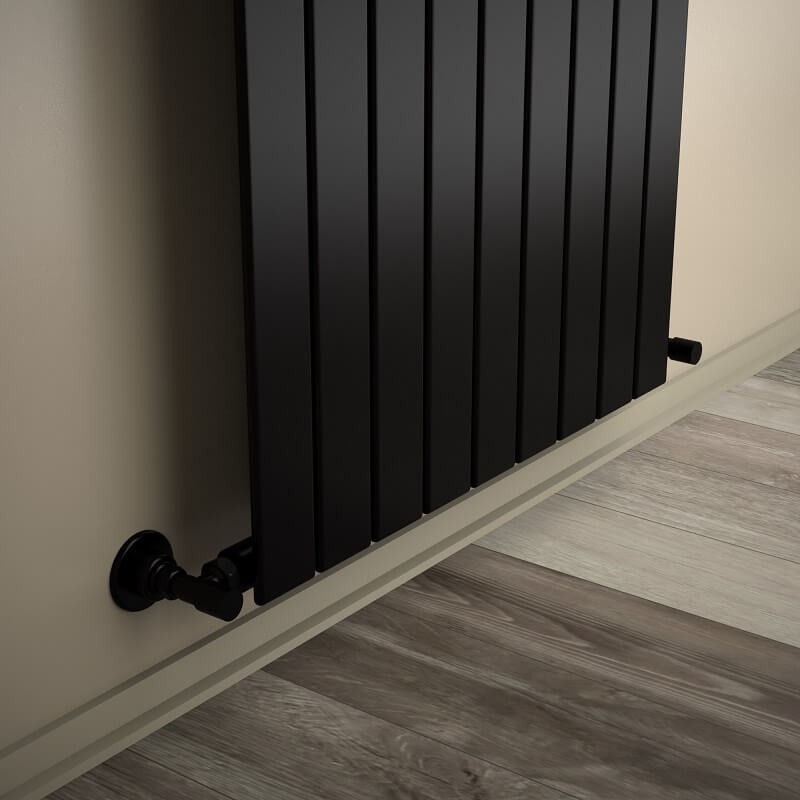

Type 10V Decorative Radiator 900x662 Matte Black

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=900 mm

• Width=662 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=9 Pieces

• Total Number of Profiles (Front + Back)=9+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=5,2 lt

• Weight=14,5 kg

• Boxed Weight=16,59 kg

• Box Size=71x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =752 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =752 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 621 Kcal/h

• Heat Output 90/70-20° ?t=60°C=783Kcal/h

• Heat Output 55/45-20° ?t=30°C=318 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=721 Watt

• Heat Output 90/70-20°?t=60°C=909 Watt

• Heat Output 55/45-20°?t=30°C=370 Watt


Btu

• Heat Output 75/65-20°?t=50°C=2461 Btu

• Heat Output 90/70-20°?t=60°C=3101 Btu

• Heat Output 55/45-20°?t=30°C=1261 Btu
