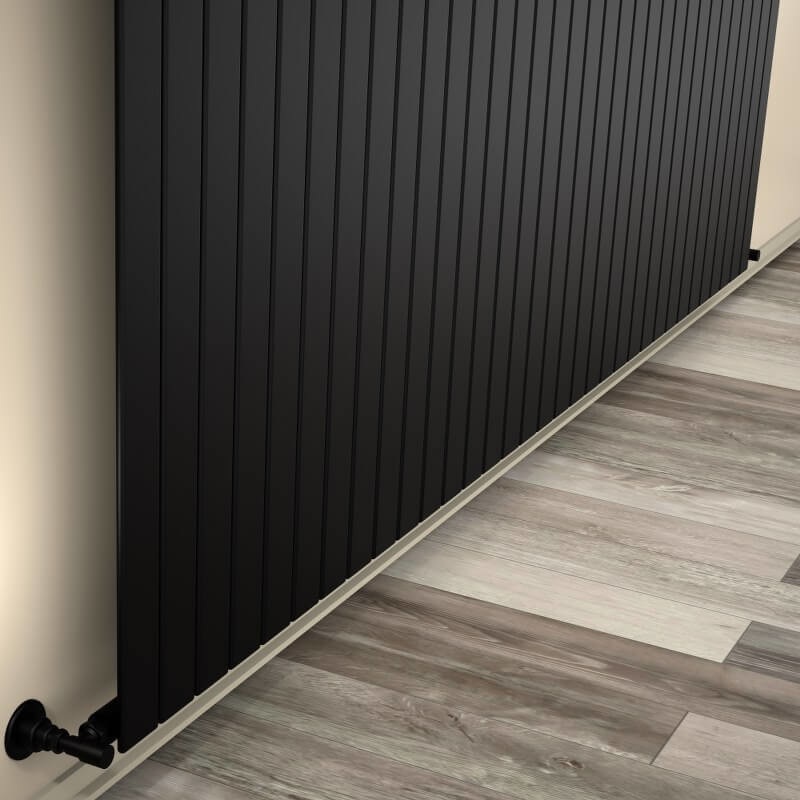

Type 10V Decorative Radiator 900x2438 Matte Black

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=900 mm

• Width=2438 mm

• Color/Coating=Matte Black RAL9005

• Number of Sections=33 Pieces

• Total Number of Profiles (Front + Back)=33+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=18,9 lt

• Weight=53 kg

• Boxed Weight=59,89 kg

• Box Size=248x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2528 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =2528 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2273 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2864Kcal/h

• Heat Output 55/45-20° ?t=30°C=1164 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2642 Watt

• Heat Output 90/70-20°?t=60°C=3329 Watt

• Heat Output 55/45-20°?t=30°C=1353 Watt


Btu

• Heat Output 75/65-20°?t=50°C=9015 Btu

• Heat Output 90/70-20°?t=60°C=11359 Btu

• Heat Output 55/45-20°?t=30°C=4616 Btu
