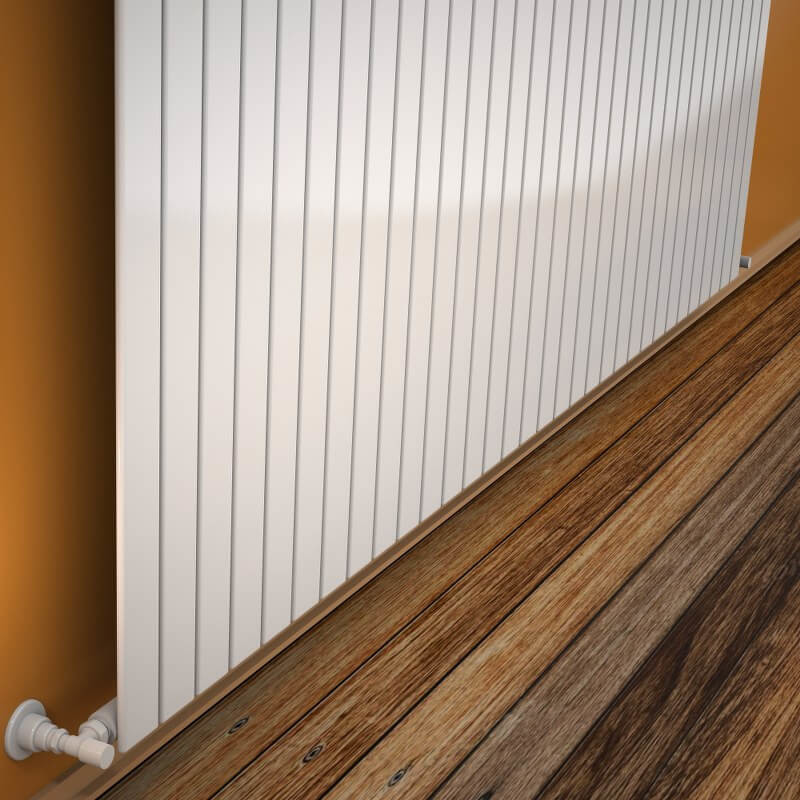

Type 10V Decorative Radiator 900x2364 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=900 mm

• Width=2364 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=32 Pieces

• Total Number of Profiles (Front + Back)=32+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=18,4 lt

• Weight=51,4 kg

• Boxed Weight=58,09 kg

• Box Size=241x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2454 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =2454 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 2204 Kcal/h

• Heat Output 90/70-20° ?t=60°C=2778Kcal/h

• Heat Output 55/45-20° ?t=30°C=1129 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=2562 Watt

• Heat Output 90/70-20°?t=60°C=3229 Watt

• Heat Output 55/45-20°?t=30°C=1312 Watt


Btu

• Heat Output 75/65-20°?t=50°C=8742 Btu

• Heat Output 90/70-20°?t=60°C=11015 Btu

• Heat Output 55/45-20°?t=30°C=4476 Btu
