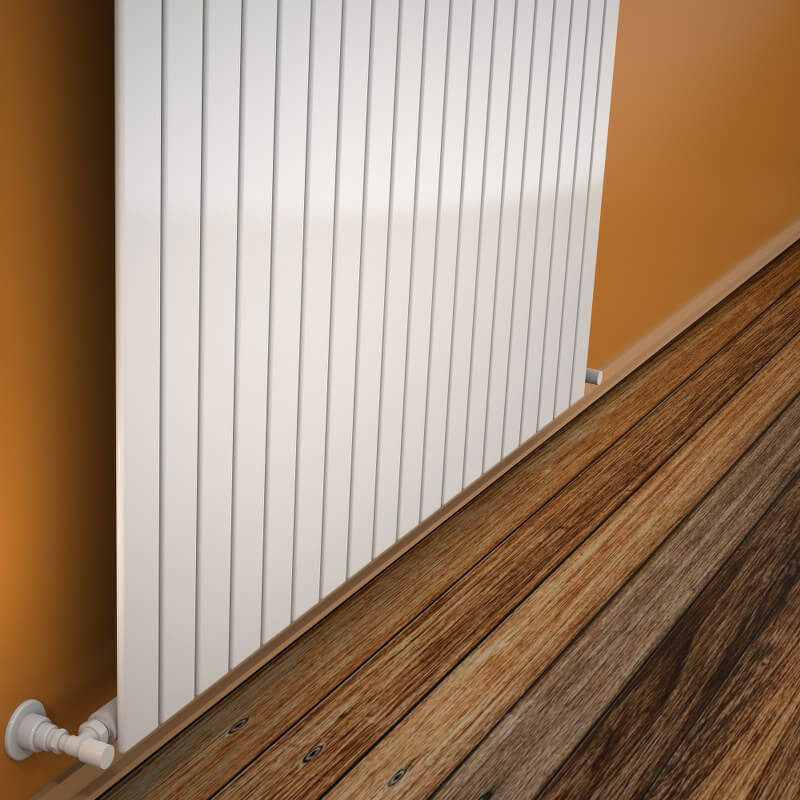

Type 10V Decorative Radiator 900x1402 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=900 mm

• Width=1402 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=19 Pieces

• Total Number of Profiles (Front + Back)=19+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=10,9 lt

• Weight=30,6 kg

• Boxed Weight=34,69 kg

• Box Size=145x95x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =1492 mm

• Standard Entry2 =850 mm

• Standard Entry Cross =1492 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1309 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1650Kcal/h

• Heat Output 55/45-20° ?t=30°C=671 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1521 Watt

• Heat Output 90/70-20°?t=60°C=1917 Watt

• Heat Output 55/45-20°?t=30°C=779 Watt


Btu

• Heat Output 75/65-20°?t=50°C=5190 Btu

• Heat Output 90/70-20°?t=60°C=6540 Btu

• Heat Output 55/45-20°?t=30°C=2658 Btu
