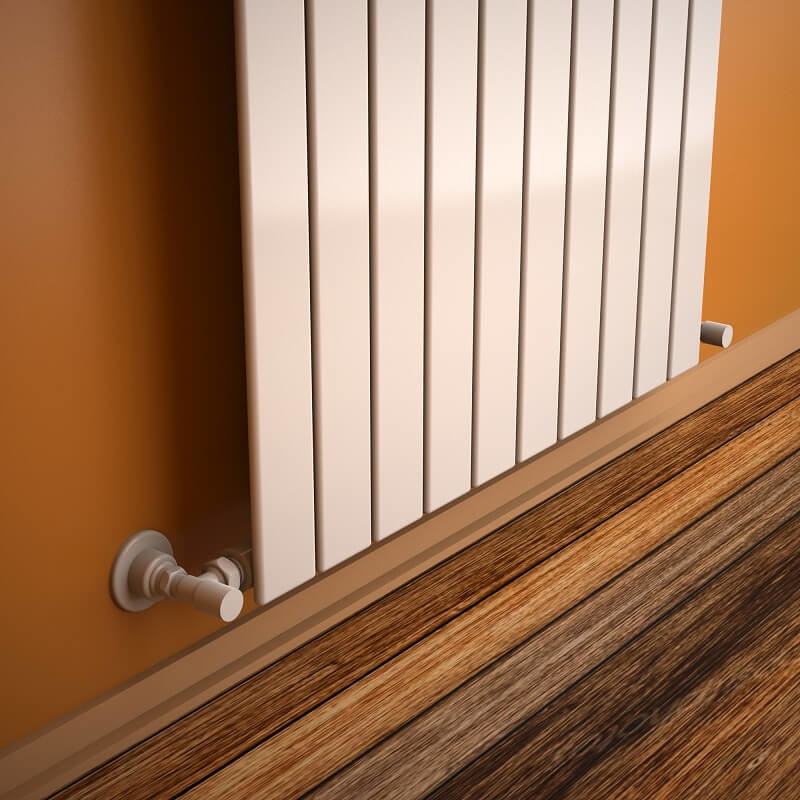

Type 10V Decorative Radiator 600x736 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=600 mm

• Width=736 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=10 Pieces

• Total Number of Profiles (Front + Back)=10+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=4,2 lt

• Weight=11,4 kg

• Boxed Weight=13,03 kg

• Box Size=78x65x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =826 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =826 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 475 Kcal/h

• Heat Output 90/70-20° ?t=60°C=599Kcal/h

• Heat Output 55/45-20° ?t=30°C=244 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=552 Watt

• Heat Output 90/70-20°?t=60°C=696 Watt

• Heat Output 55/45-20°?t=30°C=283 Watt


Btu

• Heat Output 75/65-20°?t=50°C=1884 Btu

• Heat Output 90/70-20°?t=60°C=2374 Btu

• Heat Output 55/45-20°?t=30°C=965 Btu
