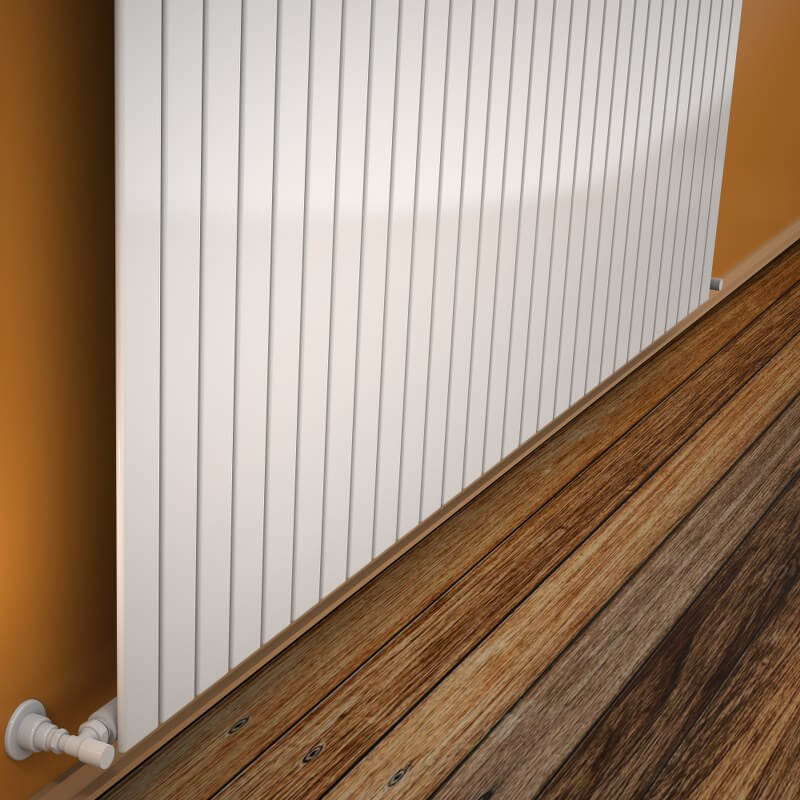

Type 10V Decorative Radiator 600x2142 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=600 mm

• Width=2142 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=29 Pieces

• Total Number of Profiles (Front + Back)=29+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12,3 lt

• Weight=33 kg

• Boxed Weight=37,16 kg

• Box Size=219x65x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2232 mm

• Standard Entry2 =550 mm

• Standard Entry Cross =2232 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1378 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1737Kcal/h

• Heat Output 55/45-20° ?t=30°C=706 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1602 Watt

• Heat Output 90/70-20°?t=60°C=2019 Watt

• Heat Output 55/45-20°?t=30°C=821 Watt


Btu

• Heat Output 75/65-20°?t=50°C=5467 Btu

• Heat Output 90/70-20°?t=60°C=6889 Btu

• Heat Output 55/45-20°?t=30°C=2800 Btu
