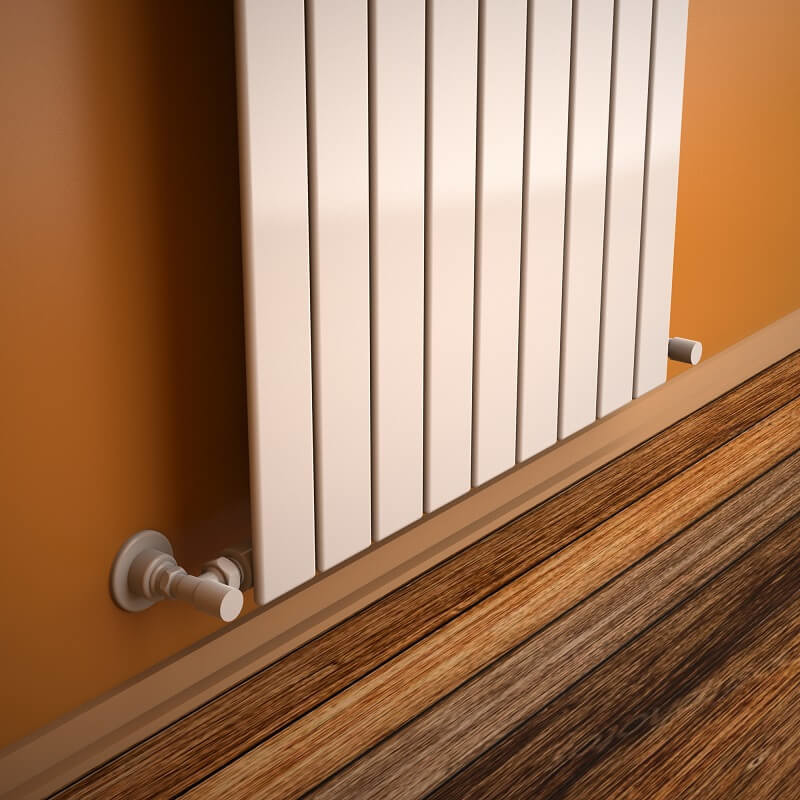

Type 10V Decorative Radiator 500x662 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=500 mm

• Width=662 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=9 Pieces

• Total Number of Profiles (Front + Back)=9+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=3,4 lt

• Weight=8,9 kg

• Boxed Weight=10,2 kg

• Box Size=71x55x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =752 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =752 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 361 Kcal/h

• Heat Output 90/70-20° ?t=60°C=455Kcal/h

• Heat Output 55/45-20° ?t=30°C=185 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=419 Watt

• Heat Output 90/70-20°?t=60°C=528 Watt

• Heat Output 55/45-20°?t=30°C=215 Watt


Btu

• Heat Output 75/65-20°?t=50°C=1430 Btu

• Heat Output 90/70-20°?t=60°C=1802 Btu

• Heat Output 55/45-20°?t=30°C=733 Btu
