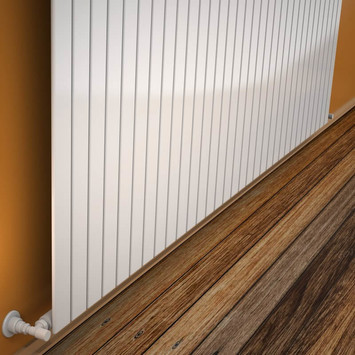

Type 10V Decorative Radiator 500x2364 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=500 mm

• Width=2364 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=32 Pieces

• Total Number of Profiles (Front + Back)=32+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=12 lt

• Weight=31,4 kg

• Boxed Weight=35,25 kg

• Box Size=241x55x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2454 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =2454 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1283 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1617Kcal/h

• Heat Output 55/45-20° ?t=30°C=657 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1491 Watt

• Heat Output 90/70-20°?t=60°C=1879 Watt

• Heat Output 55/45-20°?t=30°C=764 Watt


Btu

• Heat Output 75/65-20°?t=50°C=5088 Btu

• Heat Output 90/70-20°?t=60°C=6411 Btu

• Heat Output 55/45-20°?t=30°C=2606 Btu
