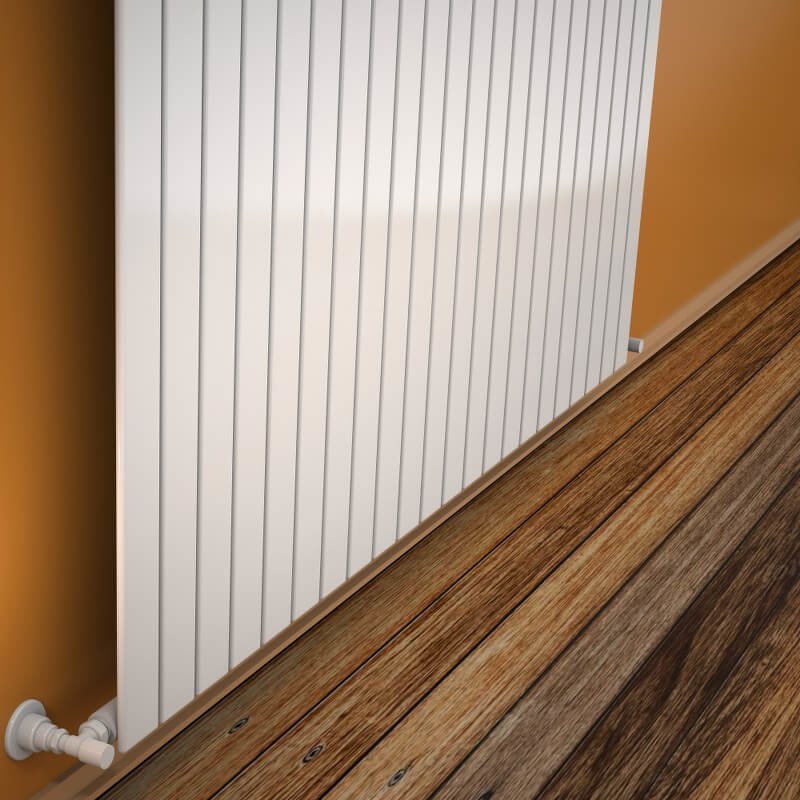

Type 10V Decorative Radiator 500x1624 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=500 mm

• Width=1624 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=22 Pieces

• Total Number of Profiles (Front + Back)=22+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=8,3 lt

• Weight=21,6 kg

• Boxed Weight=24,34 kg

• Box Size=167x55x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =1714 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =1714 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 882 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1112Kcal/h

• Heat Output 55/45-20° ?t=30°C=452 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1025 Watt

• Heat Output 90/70-20°?t=60°C=1292 Watt

• Heat Output 55/45-20°?t=30°C=525 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3498 Btu

• Heat Output 90/70-20°?t=60°C=4408 Btu

• Heat Output 55/45-20°?t=30°C=1791 Btu
