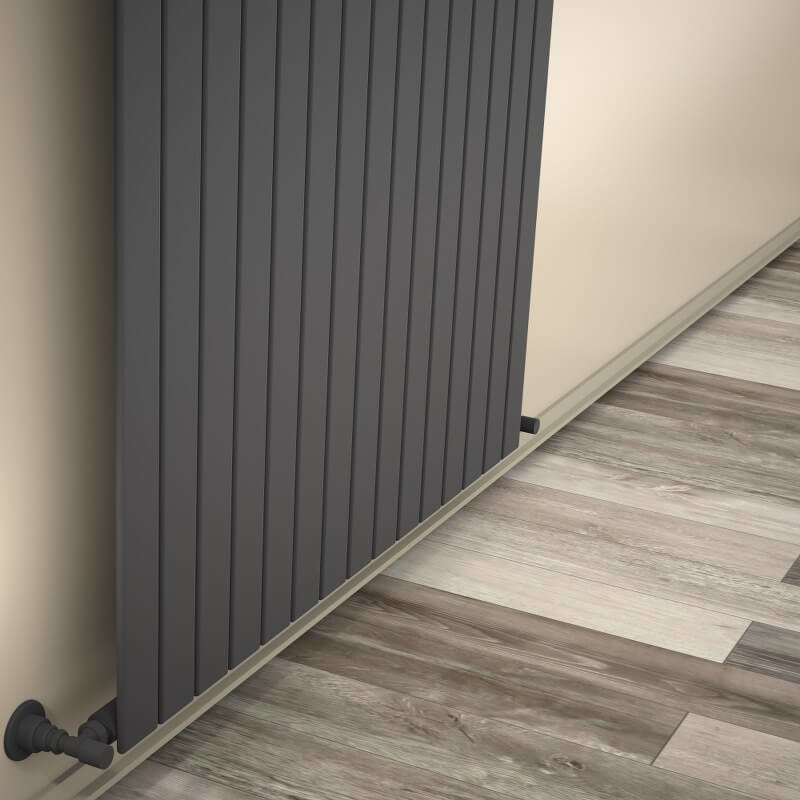

Type 10V Decorative Radiator 500x1106 Anthracite

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=500 mm

• Width=1106 mm

• Color/Coating=Anthracite

• Number of Sections=15 Pieces

• Total Number of Profiles (Front + Back)=15+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=5,6 lt

• Weight=14,8 kg

• Boxed Weight=16,76 kg

• Box Size=115x55x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =1196 mm

• Standard Entry2 =450 mm

• Standard Entry Cross =1196 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 602 Kcal/h

• Heat Output 90/70-20° ?t=60°C=759Kcal/h

• Heat Output 55/45-20° ?t=30°C=309 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=699 Watt

• Heat Output 90/70-20°?t=60°C=881 Watt

• Heat Output 55/45-20°?t=30°C=358 Watt


Btu

• Heat Output 75/65-20°?t=50°C=2385 Btu

• Heat Output 90/70-20°?t=60°C=3006 Btu

• Heat Output 55/45-20°?t=30°C=1222 Btu
