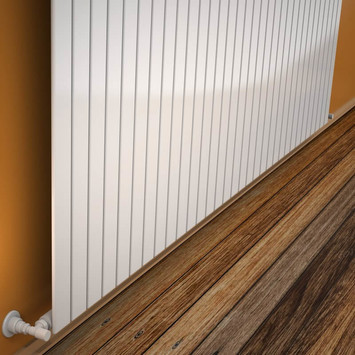

Type 10V Decorative Radiator 400x2364 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=400 mm

• Width=2364 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=32 Pieces

• Total Number of Profiles (Front + Back)=32+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=10,4 lt

• Weight=26,5 kg

• Boxed Weight=29,64 kg

• Box Size=241x45x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2454 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =2454 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 1039 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1310Kcal/h

• Heat Output 55/45-20° ?t=30°C=532 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1208 Watt

• Heat Output 90/70-20°?t=60°C=1523 Watt

• Heat Output 55/45-20°?t=30°C=619 Watt


Btu

• Heat Output 75/65-20°?t=50°C=4122 Btu

• Heat Output 90/70-20°?t=60°C=5194 Btu

• Heat Output 55/45-20°?t=30°C=2111 Btu
