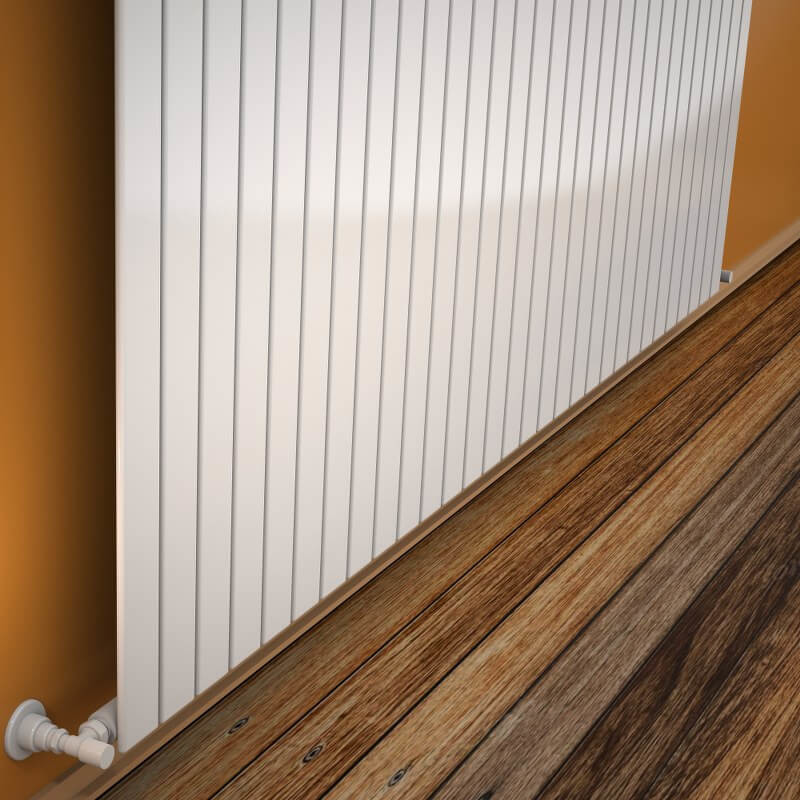

Type 10V Decorative Radiator 400x2216 White

TECHNICAL INFORMATION

• Model = 10V

• Material =Steel

• Height=400 mm

• Width=2216 mm

• Color/Coating=Bright White RAL9016

• Number of Sections=30 Pieces

• Total Number of Profiles (Front + Back)=30+0 Pieces

• Profile Dimension=70x11 mm

• Collector Dimension=38 mm

• Maximum Working Pressure=4,5 bar

• Radiator Depth=48 mm

• Wall to Center of Inlet=40 mm

• Wall Projection Distance=69 mm

• Radiator Thread Dimension=1/2"

• Water Volume=9,8 lt

• Weight=24,8 kg

• Boxed Weight=27,76 kg

• Box Size=226x45x8,6 cm

TAPPING OPTIONS

• Standard Entry1 =2306 mm

• Standard Entry2 =350 mm

• Standard Entry Cross =2306 mm

• Bottom Middle Entrance=50mm

• Bottom Right Entrance=50mm

• Bottom Left Entrance=50mm

Heat Output

Kcal / h


• Heat Output 75/65-20°?t=50°C = 975 Kcal/h

• Heat Output 90/70-20° ?t=60°C=1229Kcal/h

• Heat Output 55/45-20° ?t=30°C=500 Kcal/h


Watts

• Heat Output 75/65-20°?t=50°C=1133 Watt

• Heat Output 90/70-20°?t=60°C=1428 Watt

• Heat Output 55/45-20°?t=30°C=581 Watt


Btu

• Heat Output 75/65-20°?t=50°C=3866 Btu

• Heat Output 90/70-20°?t=60°C=4872 Btu

• Heat Output 55/45-20°?t=30°C=1980 Btu
